产品信息
高性能（DS系列）

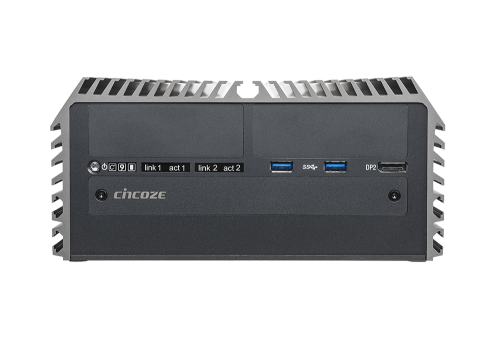

德承DS-1200系列是一款高性能的无风扇嵌入式计算机，采用第9/8代Intel®Core™平台(Coffee Lake-R/S)，提供多达6个核心来满足各种高端计算需求。DS-1200提供丰富的I/O，如1个PS/2、1个音频输入输出、2个RS-232/422/485串口、2个Intel®GbE网口、2个USB 3.1 (Gen2)、4个USB 3.0、2个USB 2.0并具备三重独立显示。在内存和存储方面，DS-1200可配备多达32GB的DDR4-2666 SO-DIMM内存，2个2.5寸SATA III硬盘，3个mSATA SSD和1个M.2 2280 NVMe SSD，满足高性能存储需求。
支持第9/8代英特尔®核心™i3/i5和i7 CPU
2x DDR4 SO-DIMM插槽，2666mhz，支持高达64GB
独立三显（DVI-I，DP，DP、HDMI）
1个M.2 2280 M Key插槽，自动检测PCIex4 NVMe SSD 或 SATA Gen3 SSD
独立三显（DVI-I，DP，DP、HDMI）
1个M.2 2280 M Key插槽，自动检测PCIex4 NVMe SSD 或 SATA Gen3 SSD
2x 2.5“可抽取SATA硬盘/SSD，支持RAID 0 / 1
2种CMI接口，6种可选的I/O扩展模块
点火系统 1x CFM接口（IGN）模块
支持3个全尺寸迷你PCIe插槽的无线和I/O扩展
宽工作温度（-40°C至70°C）
通过了EN50155 / EN50121-3-2 认证
宽工作温度（-40°C至70°C）
通过了EN50155 / EN50121-3-2 认证

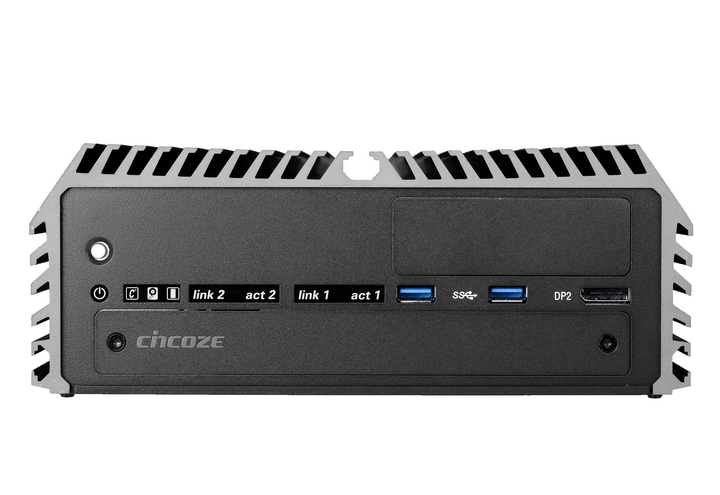

| 产品图 | 产品型号 | CPU | Chipset | I/O | Expansion |
|---|---|---|---|---|---|
|
DS-1202（支持GPU） | 8th/9th Gen. Intel Core i3 / i5 / i7 / Pentium / Celeron | Intel Q370 | 2x LAN, 2x USB 3.1, 4x USB 3.0, 2x USB 2.0, 2x COM, 1x DVI-I, 2x Display Port | 1x CFM Interface, 4x CMI Interfaces, 2x PCI/PCIe slot, 3x Full-size Mini-PCIe Sockets, 5x Universal I/O Brackets, 2x SIM Sockets, 2x Antenna Holes |
|
DS-1301 | 10th Gen. Intel® Xeon® and Core™ i9/i7/i5/i3 | Intel® W480E | 2x LAN, 6x USB 3.2, 2x USB 2.0 ,2x COM, 1x PS/2, 1x HDMI, 2x DisplayPort, 1x VGA | 3 x Full-size Mini-PCIe Socket, 2 x SIM Socket ,4 x CMI Interface, 1 x CFM IGN Interface,1 x PCI/PCIe slot |
|
DS-1300 | 10th Gen. Intel® Xeon® and Core™ i9/i7/i5/i3 | Intel® W480E | 2x LAN, 6x USB 3.2, 2x USB 2.0 ,2x COM, 1x PS/2, 1x HDMI, 2x DisplayPort, 1x VGA | 3 x Full-size Mini-PCIe Socket, 2 x SIM Socket ,4 x CMI Interface, 1 x CFM IGN Interface |
|
DS-1302（支持GPU） | 10th Gen. Intel® Xeon® and Core™ i9/i7/i5/i3 | Intel® W480E | 2x LAN, 6x USB 3.2, 2x USB 2.0 ,2x COM, 1x PS/2, 1x HDMI, 2x DisplayPort, 1x VGA | 3 x Full-size Mini-PCIe Socket, 2 x SIM Socket ,4 x CMI Interface, 1 x CFM IGN Interface,2 x PCI/PCIe slot |
|
DS-1201 | 8th/9th Gen. Intel Core i3 / i5 / i7 / Pentium / Celeron | Intel Q370 | 2x LAN, 2x USB 3.1, 4x USB 3.0, 2x USB 2.0, 2x COM, 1x DVI-I, 2x Display Port | 1x CFM Interface, 4x CMI Interfaces, 1x PCI/PCIe slot, 3x Full-size Mini-PCIe Sockets, 4x Universal I/O Brackets, 2x SIM Sockets, 2x Antenna Holes |
|
DS-1200 | 第8代/9代英特尔 酷睿i3 / i5 / i7 /奔腾/赛扬 | Intel Q370 | 2x LAN, 2x USB 3.1, 4x USB 3.0, 2x USB 2.0, 2x COM, 1x DVI-I, 2x Display Port | 1x CFM Interface, 4x CMI Interfaces, 3x Full-size Mini-PCIe Sockets, 4x Universal I/O Brackets, 2x SIM Sockets, 2x Antenna Holes |
|
DS-1102(支持GPU) | 6th Gen. Intel Core i3 / i5 / i7 | Q170 | 2xLAN, 6xUSB, 2xCOM, 1xDVI-i, 1xDisplayPort, 1xDisplayPort/HDMI | 1x CFM Interface, 2x CMI Interfaces, 2xPCI/PCIe slot, 3x Full-size Mini-PCIe Sockets, 2x Universal I/O Brackets, 1x SIM Socket, 2x Antenna Holes |
|
DS-1101 | 第六代intel core i3 i5 i7 | Q170 | 2xLAN, 6xUSB, 2xCOM, 1xDVI-i, 1xDisplayPort, 1xDisplayPort/HDMI | 1x CFM Interface, 2x CMI Interfaces, 1xPCI/PCIe slot, 3x Full-size Mini-PCIe Sockets, 2x Universal I/O Brackets, 1x SIM Socket, 2x Antenna Holes |
|
DS-1100 | 6th Gen. Intel Core i3 / i5 / i7 | Q170 | 2xLAN, 6xUSB, 2xCOM, 1xDVI-i, 1xDisplayPort, 1xDisplayPort/HDMI | 1x CFM Interface, 2x CMI Interfaces, 3x Full-size Mini-PCIe Sockets, 2x Universal I/O Brackets, 1x SIM Socket, 2x Antenna Holes |
|
DS-1002(支持GPU） | 4th Gen. Intel Core i3 / i5 / i7 | Q87 | 2x LAN, 8x USB, 6x COM, 1x DVI-I, 2x DisplayPort, 4x DI/4x DO | 2x Mini-PCIe Slot, 2x PCI / PCIe Slot |
|
DS-1001 | 4th Gen. Intel Core i3 / i5 / i7 | Q87 | 2x LAN, 8x USB, 6x COM, 1x DVI-I, 2x DisplayPort, 4x DI/4x DO | 2x Mini-PCIe Slot, 1x PCI / PCIe Slot |
|
DS-1000 | intel core i3 i5 i7 （haswell） | Q87 Chipset | 6x LAN, 8x USB, 6x COM, 1x DVI-I, 2x DisplayPort, 4x DI/4x DO | 2x Mini-PCIe Slot |
|
DS-1000L | 4th Gen. Intel Core i3 / i5 / i7 | Intel Q87 | 6x LAN, 8x USB, 6x COM, 1x DVI-I, 2x DisplayPort, 4x DI/4x DO | 2x Mini-PCIe Slot |
