产品信息
高效能系列(CV-1000/P1000)

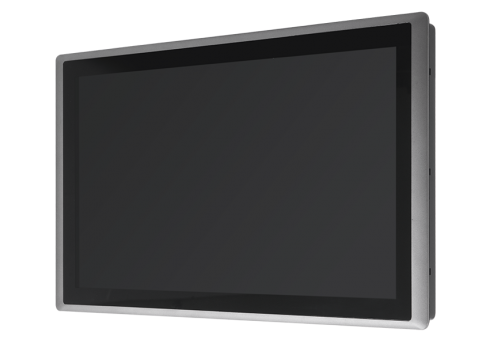

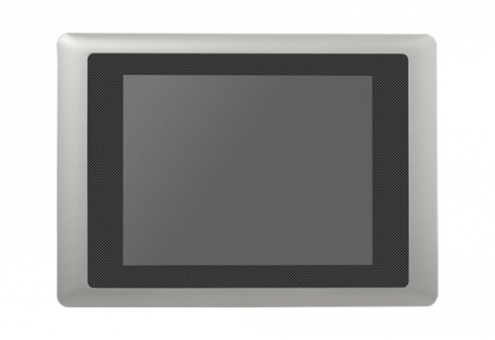

德承CV-100/P1000系列是一体化的节能工业平板电脑，集成了高分辨率的TFT-LCD，触摸屏以及工业电脑。提供显示尺寸从8寸至21寸，并且可选4:3和16:9的显示器分辨率。•8“~ 21”多功能合一工业平板电脑
可转换显示系统(CDS专利技术)
•可选投射电容式或5线电阻式触摸屏
铝压铸前框架
•前面板IP65等级
| 产品图 | 产品型号 | CPU | Chipset | I/O | Expansion |
|---|---|---|---|---|---|
|
CV-W124 / P1101 | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA, 1x DisplayPort, 2x GbE LAN, 4x USB 3.0 , 4x COM, 8x DIO | 2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN) | |
|
CV-W124 / P1001 | Intel® Atom™ E3845 | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO | 1x Mini-PCIe | |
|
CV-W115 / P1001E | Intel® Atom™ E3845, SoC | 1x Mini-PCIe, 2x Universal I/O Bracket | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO | |
|
|
CV-W115 / P1001 | Intel® Atom™ E3845, SoC | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO | 1x Mini-PCIe | |
|
CV-115 / P1001E | Intel® Atom™ E3845, SoC | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO | 1x Mini-PCIe, 2x Universal I/O Bracket | |
|
CV-115 / P1001 | Intel® Atom™ E3845, SoC | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO | 1x Mini-PCIe | |
|
|
CV-112H / P1001E | Intel® Atom™ E3845, SoC | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO | 1x Mini-PCIe, 2x Universal I/O Bracket | |
|
CV-112H / P1001 | Intel® Atom™ E3845, SoC | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO | 1x Mini-PCIe | |
|
|
CV-112 / P1001E | Intel® Atom™ E3845, SoC | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO | 1x Mini-PCIe, 2x Universal I/O Bracket | |
|
CV-112 / P1001 | Intel® Atom™ E3845, SoC | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO | 1x Mini-PCIe | |
|
|
CV-110H / P1001E | Intel® Atom™ E3845, SoC | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO | 1x Mini-PCIe, 2x Universal I/O Bracket | |
|
CV-110H / P1001 | ntel® Atom™ E3845, SoC | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO | 1x Mini-PCIe | |
|
|
CV110/P1001E | Intel® Atom™ E3845, SoC | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO | 1x Mini-PCIe, 2x Universal I/O Bracket | |
|
CV-110 / P1001 | Intel® Atom™ E3845, SoC | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO | 1x Mini-PCIe | |
|
CV-108 / P1001E | Intel® Atom™ E3845, SoC | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO | 1x Mini-PCIe, 2x Universal I/O Bracket | |
|
CV-108 / P1001 | Intel® Atom™ E3845, SoC | 2x LAN, 4x USB, 2x COM, 1x VGA, 1x DisplayPort, 4x DI/4x DO | 1x Mini-PCIe |
