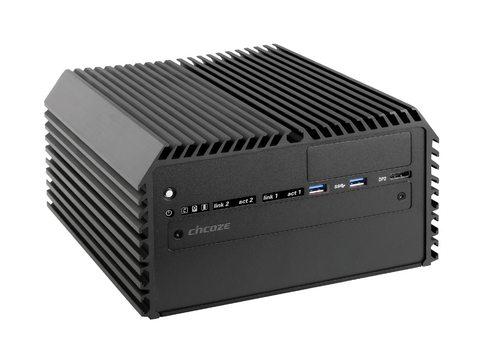

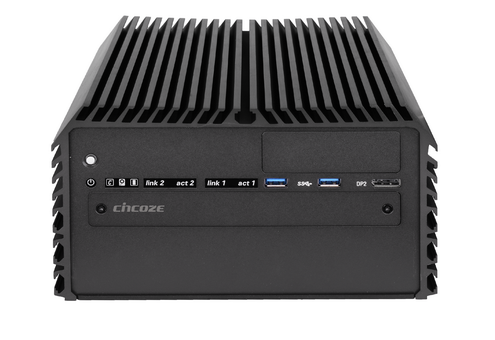

DS-1102(支持GPU)
cincoze DS-1100系列是一个支持NVIDIA高端显卡,并支持CAN总线,集成第六代英特尔 酷睿 平台(skylake-s)桌面处理器(LGA1151)的高性能的无风扇嵌入式计算机,可扩展8个POE,可容纳两个DDR4插槽,支持高达32 GB内存,因此ds-1100系列能满足各类高端计算的要求,尤其适用于自动驾驶行业。
产品特点
- 支持第六代智能英特尔 酷睿 i3 / i5 / i7插槽式CPU(LGA1151)
- 2x DDR4 SO-DIMM插槽,2133MHz,最高支持32 GB
- 三重独立显示器(DVI-I,DP,DP / HDMI)
- 2x 2.5“SATA HDD / SSD硬盘托架,支持RAID 0/1
- 2x PCI / PCIe插槽,具有不同的接口组合
- 2个CMI接口,带有6种可选模块,用于I / O扩展
- 1x CFM接口,用于添加可选的电源点火感应(IGN)模块
- 支持3x全尺寸Mini-PCIe插槽,用于无线和I / O扩展
- 宽工作温度(-40°C至70°C)
- EN50155 / EN50121-3-2铁路应用认证
- E-Mark(E13,No.10R-0514229)认证
产品介绍
- DS-1100系列是一个高性能无风扇的嵌入式计算机由第六代英特尔 核心 平台(Skylake-S)支持广泛的台式机cpu(LGA1151插座类型),支持2个DDR4插槽,最大容量可达32GB. DS-1100系列可以满足各种各样的高端计算的需求。DS-1100系列提供功能强大的功能,如丰富的I / O、连续的电源、电气隔离的串口、光学隔离的数字I / O、多个局域网、以太网的电源、M12连接器、RAID 0/1、电源点火传感和即时重新启动。有了Cincoze的CMI和CFM技术,可根据您的需求随时使用模块来配置DS-1100系列。DS-1100系列还支持最大的2个PCI / PCIe扩展槽,可扩展GTX1050GPU等多种高端显卡,并通过不同的接口组合扩展来实现客户不同的功能需求。DS-1100系列是一个真正的具有较宽的工作温度具有坚固的计算系统(40°C 70°C)、宽范围直流电源输入(从9V至48V)、冲击和振动高耐受性的,高标准工业的保护和集成的超级电容电池操作,DS-1100系列适合部署在恶劣的环境下关键的应用中,因此它是完全免维护的。
详细规格
Model Name | DS-1102 | |
System | Processor | Intel Core i7-6700TE Processor (8M Cache, up to 3.40 GHz, 35W TDP) Intel Core i5-6500TE Processor (6M Cache, up to 3.30 GHz, 35W TDP) Intel Core i3-6100TE Processor (4M Cache, 2.70 GHz, 35W TDP) Intel Pentium Processor G4400TE (3M Cache, 2.40 GHz, 35W TDP) Intel Celeron Processor G3900TE (2M Cache, 2.30 GHz, 35W TDP) Intel Core i7-6700 Processor (8M Cache, up to 4.00 GHz, 65W TDP) Intel Core i5-6500 Processor (6M Cache, up to 3.60 GHz, 65W TDP) Intel Core i3-6100 Processor (3M Cache, 3.70 GHz, 51W TDP) Intel Pentium Processor G4400 (3M Cache, 3.30 GHz, 54W TDP) Intel Celeron Processor G3900 (2M Cache, 2.80 GHz, 51W TDP) |
Chipset | Intel Q170 | |
Memory | 2x DDR4 2133 MHz SO-DIMM, Up to 32 GB (Un-buffered and Non-ECC) | |
Graphics | .Integrated Intel HD Graphics .Three Independent Display |
|
Audio | Realtek ALC888-GR, High Definition Audio | |
BIOS | AMI 16 Mbit SPI BIOS | |

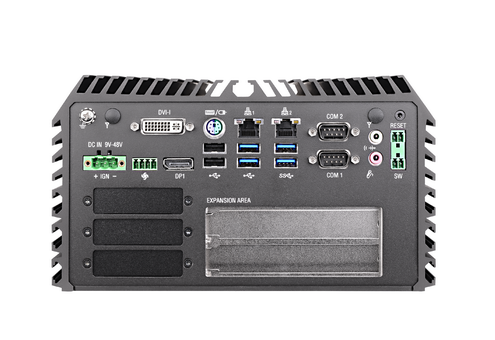

I/O Interface | DVI | 1x DVI-I connector, Up to 1920x1080@60Hz |
DP | 1x DP connector, Up to 3840 x 2160 | |
DP/HDMI | 1x DP/HDMI connector, Up to 3840 x 2160 | |
LAN | 2x 10/100/1000 Mbps, RJ45 GbE1: Intel I219LM GbE2: Intel I210AT Support Wake On Lan, Teaming, Jumbo frame, IEEE 1588v2, PXE Optional Module .4x 10/100/1000 Mbps, RJ45 Port .4x 10/100/1000 Mbps, M12 Port |
|
PoE+ | Optional Module .4x PoE+, Individual port 25.5W, RJ45 Port .4x PoE+, Individual port 25.5W, M12 Port |
|
Serial Port | 2x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9 Optional Module .4x RS-232/422/485, DB9 Connector .4x Electrical Isolated RS-232/422/485, DB9 Connector |
|
USB | .6x USB 3.0, Type-A .2x USB 2.0, Type-A |
|
PS/2 Port | 1x PS/2, 6-pin mini-DIN Female Connector | |
Isolated DIO | Optional Module .8x Optical Isolated DIO(4DI, 4DO), 10 pin Terminal Block |
|
Line-Out | 1x Line-Out, Phone Jack 3.5mm | |
Mic-In | 1x Mic-In, Phone Jack 3.5mm | |
Power Button | 1x ATX Power On/Off Button | |
AT/ATX Switch | 1x AT/ATX Mode Switch | |
Clear CMOS Switch | 1x Clear CMOS Switch | |
Remote Power On/Off Connector | 1x Remote Power On/Off Connector, 2-pin Terminal Block | |
Remote Reset Connector | 1x Remote Reset Connector, 2-pin Terminal Block | |
External FAN Connector | 1x External FAN Connector, 4-pin Terminal Block | |
Storage | SSD/HDD | 2x 2.5" SATA HDD/SSD bay (Gen3) One Internal, One Front Accessable Support RAID 0/1, Hot Swap |
mSATA | 3x mSATA (Shared by Mini-PCIe Socket) (Gen2) | |
Expansion | PCI/ PCIe | 2x PCI/PCIe Expansion slots Optional Riser Card .1x PCIex16, 1x PCIex1 .2x PCIex8 .1x PCIex16, 1x PCI .2x PCI |
CFM (Control Function Module) Interface | 1x CFM Interface for CFM Modules | |
CMI (Combine Multiple I/O) Interface | 2x CMI Interface for CMI Modules | |
Mini PCI Express | 3x Full-size Mini PCIe Supports Wireless & I/O Expansion |
|
Universal I/O Bracket | 3x Universal I/O Bracket | |
SIM Socket | 1x SIM Socket | |
Antenna Holes | 2x Antenna Holes | |
Other | Instant Reboot | Support 0.2sec |
Power Ignition Sensing | Optional Module .CFM with Delay Time Management and Selectable 12V/24V, Dip Switch |
|
Super Cap | Super Cap integrated for CMOS Battery Maintenance-free | |
Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset | |
Power Requirement | Power Type | AT/ATX |
Power Input Voltage | 9~48VDC | |
Connector | 3-pin Terminal Block | |
Power Adapter | Optional AC/DC Adapter .AC/DC 24V/5A, 120W .AC/DC 24V/9.2A, 220W |
|
Physical | Dimension (WxDxH) | 227 x 261 x 128 mm |
Weight Information | 5.7 kg | |
Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |
Mounting | Wall | |
Unibody Design | Yes | |
Fanless Design | Yes | |
Jumper-less Design | Yes | |
Protection | Reverse Power Input Protection | Yes |
Over Voltage Protection | 58V | |
Over Current Protection | 15A | |
ESD Protection | +/-15kV(Air), +/-8kV(Contact) | |
Surge | 3000W | |
Operating System | Windows | Windows 10 Windows 8.1 Windows 7 |
Linux | Kernel 4.4 | |
Environment | Operating Temperature | i7-6700TE, i5-6500TE, i3-6100TE, G4400TE, G3900TE (35W TDP): -40°C to 70°C i7-6700, i5-6500, i3-6100, G4400, G3900 (51~65W TDP): -40°C to 50°C (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 with Extended Temperature Peripherals; Ambient with Air Flow) |
Storage Temperature | -40°C to 85°C | |
Relative Humidity | 40°C @ 95% RH (non-Condensing) | |
Shock | Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) |
|
Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) |
|
EMC | CE, FCC Class A | |
Railway | EN50155, EN50121-3-2 | |
In-Vehicle | E-Mark (E13, No.10R-0514229) Certified |
订购信息
Available Models
Package Checklist
Optional Accessories
Model No. | Product Description |
DS-1102 | 6th Gen. Intel Core i3 / i5 / i7 (Skylake-S) High Performance, Modular and Expandable Rugged Embedded Computer with Two PCI/PCIe Expansion Slots |
Package Checklist
√ DS-1100 Embedded System x1 | √ DVI-I TO VGA Adaptor |
√ Utility DVD Driver x1 | √ Screw Pack x 1 |
√ Power Terminal Block Connector x1 | √ Wall Mounting Kit x1 |
√ Remote Power On/Off Terminal Block Connector x2 | √ Heat Sink Pack x 1 |
√ FAN Terminal Block Connector x1 |
Optional Accessories
Model No. | Description |
CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, Selectable 12V/24V (43 x 36 mm) |
CMI-CD100/FB22 | CMI Module with 4x RS-232/422/485 Serial Ports, 8x Optical Isolated DIO (4 in/4 out), 1x DS-1102 Front Bezel |
CMI-ICD100/FB22 | CMI Module with 4x Electrical Isolated RS-232/422/485 Serial Ports, 8x Optical Isolated DIO (4 in/4 out), 1x DS-1102 Front Bezel |

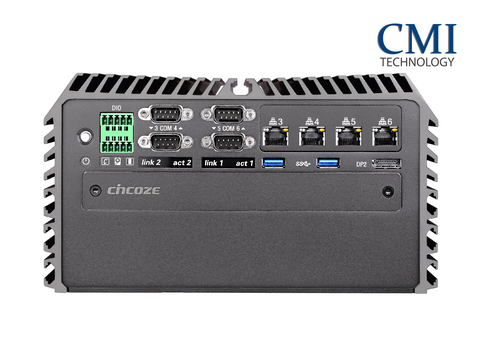

CMI-LAN104/UB0612 | CMI Module with 4x Intel GbE LAN, RJ45 Port, 1x Universal Bracket (67 x 15 mm) |
CMI-PoE104/UB0612 | CMI Module with 4x PoE+, Intel GbE LAN, RJ45 Port, Individual Port 25.5W, 1x Universal Bracket (67 x 15 mm) |

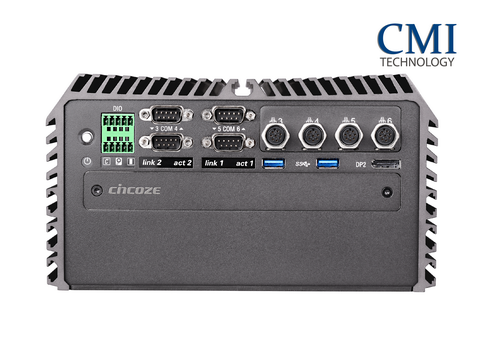

CMI-M12LAN104/UB0610 | CMI Module with M12 Connector, 4x Intel GbE LAN, 1x Universal Bracket (67 x 15 mm) |
CMI-M12PoE104/UB0610 | CMI Module with M12 Connector, 4x PoE+, Intel GbE LAN, Individual Port 25.5W, 1x Universal Bracket (67 x 15 mm) |
FAN-EX100 | External Fan with 4pin Terminal Block Plug, Mounting Bracket |
FAN-UB100 | Fan with 4pin Connector, Universal Bracket |
MEC-COM-M212/UB0303 | Mini-PCIe Module with 2x COM Ports, 2x Universal Brackets (65 x 16 mm) |
MEC-FIR-M003/UB0301 | Mini-PCIe Module with 1x 1394A Port, 2x 1394B Ports, 1x Universal Bracket (65 x 16 mm) |
MEC-LAN-M002-R1/UB0311 | Mini-PCIe Module with 2x LAN Ports, 1x Universal Bracket (65 x 16 mm) |
MEC-USB-M002/UB0314 | Mini-PCIe Module with 2x USB 3.0 Ports, 1x Universal Bracket (65 x 16 mm) |
PAH-101 | Power Adapter Holder for GS120A24 (200 x 78 x 46 mm) |
PAH-201 | Power Adapter Holder for GS220A24 (243 x 95 x 57 mm) |
GS120A24-CIN1 | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug 5.0mm Pitch, TUBES |
GS220A24-CIN1 | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES |
RC-E16E1-01 | Riser Card with 1x PCIex16, 1x PCIex1 Slots |
RC-E8E8-01 | Riser Card with 2x PCIex8 Slots |
RC-E16PI-01 | Riser Card with 1x PCIex16, 1x PCI Slots |
RC-PIPI-01 | Riser Card with 2x PCI Slots |
