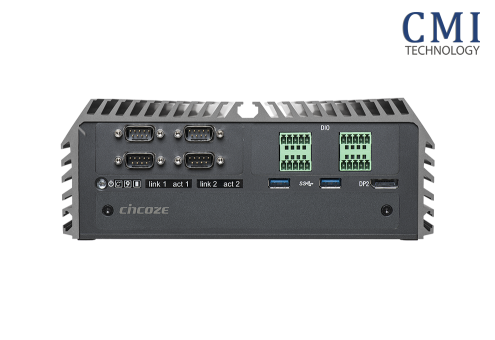

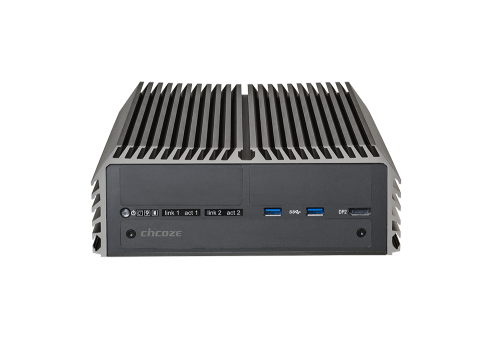

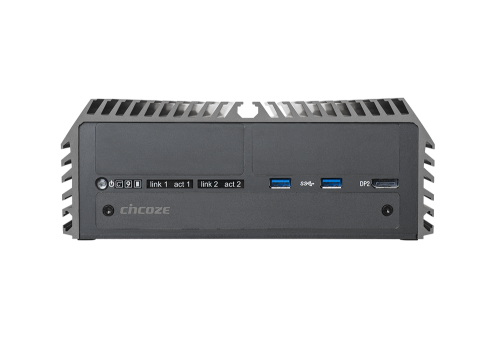

第8代 9代Intel Core 系列处理器,高性能,可扩展和模块化坚固型嵌入式计算机
  • 支持第8/9代Intel  Core  /Pentium  /Celeron  Hexa核心35W / 65W LGA 1151处理器
  • 2个DDR4 SO-DIMM插槽,支持高达2666MHz,64GB
  • 三重独立显示器:1x DVI-I和2x DP(4K分辨率)
  • 1x M.2 2280 M按键插槽,用于PCIex4 NVMe SSD或SATA Gen3 SSD的自动检测
  • 2x前置可访问SIM卡插槽,用于信号冗余
  • 用于模块化I / O扩展的4x CMI插槽
  • 1x CFM插槽,用于电源点火感应功能
  • 宽工作温度(-40°C至70°C)
  • EN50121-3-2 / LVD EN62368-1
DS-1200是一款高性能无风扇嵌入式计算机,采用第8/9代Intel  Core  平台(Coffee Lake-S),提供多达6个内核,可满足各种高端计算需求。DS-1200提供丰富的I / O,例如1x PS / 2,1x输出,1x Mic-in,2x RS-232/422/485端口,2xIntel GbE端口,2x USB 3.1(Gen2),4x USB 3.0,2 x USB 2.0和三重独立显示器。至于内存和存储,DS-1200可配备高达32 GB的DDR4-2666 SO-DIMM内存,2x 2.5英寸SATA III硬盘,3x mSATA SSD和1x M.2 SSD,以实现高性能存储要求。
Model Name DS-1200
System Processor
 • 9th Generation Intel  Coffee Lake-R S Series CPU:
 - Intel    Core    i7-9700E 8 Cores Up to 4.4 GHz, TDP 65W
 - Intel    Core    i5-9500E 6 Cores Up to 4.2 GHz, TDP 65W
 - Intel    Core    i3-9100E 4 Cores Up to 3.7 GHz, TDP 65W
 - Intel    Core    i7-9700TE 8 Cores Up to 3.8 GHz, TDP 35W
 - Intel    Core    i5-9500TE 6 Cores U p to 3.6 GHz, TDP 35W
 - Intel    Core    i3-9100TE 4 Cores Up to 3.2 GHz, TDP 35W
• 8th Generation Intel   Coffee Lake S Series CPU:
 - Intel    Core     i7-8700 6 Cores Up to 4.6 GHz - 12M Cache, TDP 65W
 - Intel    Core     i5-8500 6 Cores Up to 4.1 GHz - 9M Cache, TDP 65W
 - Intel    Core     i3-8100 4 Cores 3.6 GHz - 6M Cache, TDP 65W
 - Intel    Core     i7-8700T 6 Cores Up to 4.0 GHz - 12M Cache, TDP 35W
 - Intel    Core     i5-8500T 6 Cores Up to 3.5 GHz - 9M Cache, TDP 35W
 - Intel    Core     i3-8100T 4 Cores 3.1 GHz - 6M Cache, TDP 35W
 - Intel    Pentium    G5400 2 Cores 3.7 GHz - 4M Cache, TDP 58W
 - Intel    Pentium    G5400T 2 Cores 3.1 GHz - 4M Cache, TDP 35W
 - Intel    Celeron    G4900 2 Cores 3.1 GHz - 2M Cache, TDP 54W
 - Intel    Celeron    G4900T 2 Cores 2.9 GHz - 2M Cache, TDP 35W
Chipset Intel Q370
Memory 2x DDR4-2400/2666 MHz SO-DIMM Sockets, Supports up to 32 GB (Un-buffered and Non-ECC Type)
Graphics • Integrated Intel    UHD Graphics 630: Core™ i7/i5/i3
• Integrated Intel    UHD Graphics 610: Pentium /Celeron
• Supports Triple Independent Display (1x DVI-I, 2x DisplayPort)
Audio Realtek   ALC888, High Definition Audio

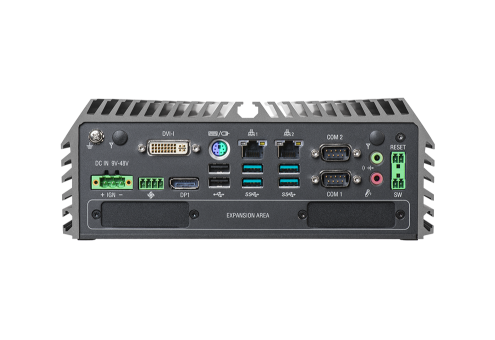

I/O Interface DVI 1x DVI-I (DVI-D: 1920 x 1200 @60Hz / VGA: 1920 x 1080 @60Hz)
DP 2x DisplayPort (DisplayPort: 4096 x 2304 @60Hz)
LAN 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45
   - GbE1: Intel   I219
   - GbE2: Intel   I210
Optional CMI Module
   - 4x RJ45 GbE LAN Module (Intel     I210AT)
   - 4x M12 GbE LAN Module (Intel      I210AT)
PoE+ Optional CMI & CFM Module
   - 4x PoE+, Individual port 25.5W, RJ45 Port
   - 4x PoE+, Individual port 25.5W, M12 Port
Serial Port 2x RS-232/422/485, DB9
Optional CMI Module
   - 4x Isolated COM Module
   - 4x COM Module
      * Supports RS-232/422/485 with Auto Flow Control, 5V/12V, DB9
USB 2x USB 3.1 Gen2 (Type A)
4x USB 3.0 (Type A)
2x USB 2.0 (Type A)
PS/2 Port 1x PS/2, 6-pin mini-DIN Female Connector
Isolated DIO Optional CMI Module
   - 16x Optical Isolated DIO Module (8 in/8 out)
Line-Out 1x Line-Out, Phone Jack 3.5mm
Mic-In 1x Mic-In, Phone Jack 3.5mm
Power Button 1x ATX Power On/Off Button
AT/ATX Switch 1x AT/ATX Mode Switch
Clear CMOS Switch 1x Clear CMOS Switch
Remote Power On/Off Connector 1x Remote Power On/Off Connector, 2-pin Terminal Block
Remote Reset Connector 1x Remote Reset Connector, 2-pin Terminal Block
External FAN Connector 1x External FAN Connector, 4-pin Terminal Block
Storage SSD/HDD • 2x 2.5" SATA HDD/SSD bay (Gen3), 1x Internal, 1x Front Accessable
• Supports RAID 0/1
M.2 1x M.2 Key M 2280 Socket, Supports PCIe x4 NVMe SSD or SATA SSD (Gen3)
mSATA 3x mSATA (shared by Mini-PCIe socket) (Gen3), BIOS Selectable
Expansion CFM (Control Function Module) Interface 1x CFM (Control Function Module) Interface
CMI (Combined Multiple I/O) Interface 2x CMI (Combined Multiple I/O) High Speed Interface
2x CMI (Combined Multiple I/O) Low Speed Interface
Mini PCI Express
3x Full-size Mini-PCIe Socket
Universal I/O Bracket 4x Universal I/O Bracket
SIM Socket 2x SIM Socket
Antenna Holes 2x Antenna Holes
Other Instant Reboot Support 0.2sec
Super Cap SuperCap Integrated for CMOS Battery Maintenance-free Operation
Watchdog Timer Software Programmable Supports 1~255 sec. System Reset
Power Requirement Power Type AT/ATX
Power Input Voltage 9~48VDC
Connector 3-pin Terminal Block
Power Adapter Optional AC/DC Adapter
  - AC/DC 24V/5A, 120W
  - AC/DC 24V/9.2A, 220W
Physical Dimension (WxDxH) 227 x 261 x 88 mm
Weight Information 4.92 kg
Mechanical Construction Extruded Aluminum with Heavy Duty Metal
Mounting Wall
Unibody Design Yes
Fanless Design Yes
Jumper-less Design Yes
Protection Reverse Power Input Protection Yes
Over Voltage Protection 58V
Over Current Protection 15A
ESD Protection +/-15kV(Air), +/-8kV(Contact)
Surge 3.84 kV (impedance 12 ohm 1.2/50us waveform)
Operating System Windows Windows   10
Linux Supports by project
Environment Operating Temperature • 35W TDP Processor: -40°C to 70°C
• 51~65W TDP Processor: -40°C to 45°C
 * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling)
 * With extended temperature peripherals; Ambient with air flow
 * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature -40°C to 85°C
Relative Humidity 95%RH @ 70°C (non-Condensing)
Shock Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
Vibration Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
MTBF 396,565 Hours
Certification EMC CE,  FCC Class A
Safety LVD (EN60950-1) (Pending)
Railway EN50155, EN50121-3-2

Available Models
Model No. Product Description
DS-1200-R10 8th Generation Intel   Core   Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer
Package Checklist
√ DS-1200 Embedded System x 1 √ Power Terminal Block Connector x 1
√ Utility DVD Driver x1 √ Remote Power On/Off Terminal Block Connector x 1
√ Heat Sink Pack x 1 √ Remote Power Reset Terminal Block Connector x 1
√ Screw Pack x 1 √ Fan Terminal Block Connector x 1
√ Wall Mount Kit x1 √ DVI-I to VGA Adaptor
