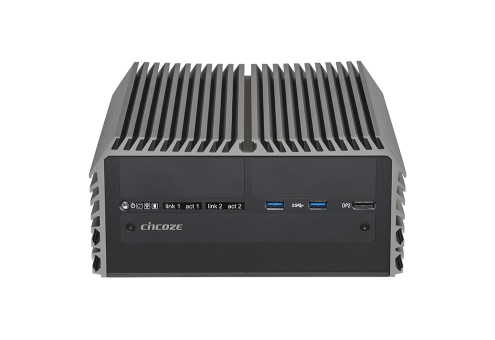

DS-1201
第8代 9代Intel®Core™系列处理器，高性能，可扩展和模块化坚固型嵌入式计算机，带有1个PCI PCIe扩展槽
产品特点
- 支持第8代/9代Intel®Core /Pentium /Celeron Hexa核心35W / 65W LGA 1151处理器
- 2个DDR4 SO-DIMM插槽，支持高达2666MHz，64GB
- 三重独立显示器：1x DVI-I和2x DP（4K分辨率）
- 1x M.2 2280 M按键插槽，用于PCIex4 NVMe SSD或SATA Gen3 SSD的自动检测
- 2x前置可访问SIM卡插槽，用于信号冗余
- 1个PCI / PCIe插槽，用于附加卡（最大长度：235 mm）
- 用于模块化I / O扩展的4x CMI插槽
- 1x CFM插槽，用于电源点火感应功能
- 宽工作温度（-40°C至70°C）
- EN50155（EN50121-3-2）认证/ EN60950-1（待定）
产品介绍
DS-1201是一款高性能无风扇嵌入式计算机，采用第8代/9代Intel Core 处理器（Coffee Lake），具有多达6个内核和32GB DDR4内存容量，可实现前所未有的性能，满足各种高端计算需求。该系统还集成了丰富的I / O，例如2xIntel®GbE端口，2x USB 3.1（Gen2），4x USB 3.0,1x DVI-I，2x DisplayPort和1x M.2 Key M 2280插槽，可实现超快速数据转移速度。

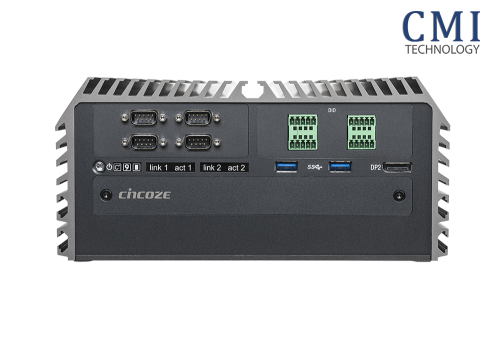

基于Cincoze创新的CMI和CFM技术，它允许用户通过即用型模块扩展I / O和功能，例如GbE / PoE端口，串行端口，光隔离数字I / O和电源点火功能。此外，DS-1201还配有一个PCI（e）扩展槽，可容纳多种附加卡。
DS-1201设计用于在恶劣条件下运行，已通过EN50155（EN50121-3-2）和EN60950-1等严格测试，以满足机车车辆等工业应用。此外，DS-1201具有宽工作温度（-40°C至70°C），宽范围直流电源输入（9V至48V），高耐冲击/振动（5G / 50G）和工业级保护功能。
详细规格
| Model Name | DS-1201 | |
| System | Processor |
• 9th Generation Intel Coffee Lake-R S Series CPU:
- Intel Core i7-9700E 8 Cores Up to 4.4 GHz, TDP 65W
- Intel Core i5-9500E 6 Cores Up to 4.2 GHz, TDP 65W
- Intel Core i3-9100E 4 Cores Up to 3.7 GHz, TDP 65W
- Intel Core i7-9700TE 8 Cores Up to 3.8 GHz, TDP 35W
- Intel Core i5-9500TE 6 Cores Up to 3.6 GHz, TDP 35W
- Intel Core i3-9100TE 4 Cores Up to 3.2 GHz, TDP 35W
• 8th Generation Intel Coffee Lake S Series CPU:
- Intel Core i7-8700 6 Cores Up to 4.6 GHz - 12M Cache, TDP 65W
- Intel Core i5-8500 6 Cores Up to 4.1 GHz - 9M Cache, TDP 65W
- Intel Core i3-8100 4 Cores 3.6 GHz - 6M Cache, TDP 65W
- Intel Core i7-8700T 6 Cores Up to 4.0 GHz - 12M Cache, TDP 35W
- Intel Core i5-8500T 6 Cores Up to 3.5 GHz - 9M Cache, TDP 35W
- Intel Core i3-8100T 4 Cores 3.1 GHz - 6M Cache, TDP 35W
- Intel Pentium G5400 2 Cores 3.7 GHz - 4M Cache, TDP 58W
- Intel Pentium G5400T 2 Cores 3.1 GHz - 4M Cache, TDP 35W
- Intel Celeron G4900 2 Cores 3.1 GHz - 2M Cache, TDP 54W
- Intel® Celeron® G4900T 2 Cores 2.9 GHz - 2M Cache, TDP 35W
|
| Chipset | Intel Q370 | |
| Memory | 2x DDR4-2400/2666 MHz SO-DIMM Sockets, Supports up to 32 GB (Un-buffered and Non-ECC Type) | |
| Graphics | • Integrated Intel UHD Graphics 630: Core i7/i5/i3 • Integrated Intel UHD Graphics 610: Pentium /Celeron • Supports Triple Independent Display (1x DVI-I, 2x DisplayPort) |
|

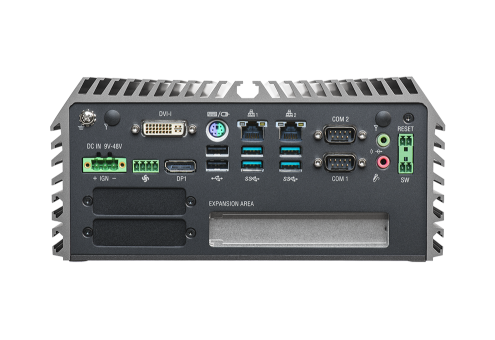

| Audio | Realtek ALC888, High Definition Audio | |
| BIOS | AMI 32MB SPI BIOS | |
| I/O Interface | DVI | 1x DVI-I (DVI-D: 1920 x 1200 @60Hz / VGA: 1920 x 1080 @60Hz) |
| DP | 2x DisplayPort (DisplayPort: 4096 x 2304 @60Hz) | |
| LAN | 2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45 - GbE1: Intel® I219 - GbE2: Intel® I210 Optional CMI Module - 4x RJ45 GbE LAN Module (Intel® I210AT) - 4x M12 GbE LAN Module (Intel® I210AT) |
|
| PoE+ | Optional CMI & CFM Module - 4x PoE+, Individual port 25.5W, RJ45 Port - 4x PoE+, Individual port 25.5W, M12 Port |
|
| Serial Port | 2x RS-232/422/485, DB9 Optional CMI Module - 4x Isolated COM Module - 4x COM Module * Supports RS-232/422/485 with Auto Flow Control, 5V/12V, DB9 |
|
| USB | 2x USB 3.1 Gen2 (Type A) 4x USB 3.0 (Type A) 2x USB 2.0 (Type A) |
|
| PS/2 Port | 1x PS/2, 6-pin mini-DIN Female Connector | |
| Isolated DIO | Optional CMI Module - 16x Optical Isolated DIO Module (8 in/8 out) |
|
| Line-Out | 1x Line-Out, Phone Jack 3.5mm | |
| Mic-In | 1x Mic-In, Phone Jack 3.5mm | |
| Power Button | 1x ATX Power On/Off Button | |
| AT/ATX Switch | 1x AT/ATX Mode Switch | |
| Clear CMOS Switch | 1x Clear CMOS Switch | |
| Remote Power On/Off Connector | 1x Remote Power On/Off Connector, 2-pin Terminal Block | |
| Remote Reset Connector | 1x Remote Reset Connector, 2-pin Terminal Block | |
| External FAN Connector | 1x External FAN Connector, 4-pin Terminal Block | |
| Storage | SSD/HDD | • 2x 2.5" SATA HDD/SSD bay (Gen3), 1x Internal, 1x Front Accessable • Supports RAID 0/1 |
| M.2 | 1x M.2 Key M 2280 Socket, Supports PCIe x4 NVMe SSD or SATA SSD (Gen3) | |
| mSATA | 3x mSATA (shared by Mini-PCIe socket) (Gen3), BIOS Selectable | |
| Expansion | PCI/ PCIe | 1x PCI/PCIe Expansion slot (with Optional Riser Card) * Supports maximum dimensions of add-on card (H x L):111.15 x 235mm |
| CFM (Control Function Module) Interface | 1x CFM (Control Function Module) Interface | |
| CMI (Combine Multiple I/O) Interface | 2x CMI (Combined Multiple I/O) High Speed Interface 2x CMI (Combined Multiple I/O) Low Speed Interface |
|
| Mini PCI Express | 3x Full-size Mini-PCIe Socket | |
| Universal I/O Bracket | 4x Universal I/O Bracket | |
| SIM Socket | 2x SIM Socket | |
| Antenna Holes | 2x Antenna Holes | |
| Other | Instant Reboot | Support 0.2sec |
| Super Cap | SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset | |
| Power Requirement | Power Type | AT/ATX |
| Power Input Voltage | 9~48VDC | |
| Connector | 3-pin Terminal Block | |
| Power Adapter | Optional AC/DC Adapter - AC/DC 24V/5A, 120W - AC/DC 24V/9.2A, 220W |
|
| Physical | Dimension (WxDxH) | 227 x 261 x 108 mm |
| Weight Information | 4.92 kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | Wall | |
| Unibody Design | Yes | |
| Fanless Design | Yes | |
| Jumper-less Design | Yes | |
| Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | 58V | |
| Over Current Protection | 15A | |
| ESD Protection | +/-15kV(Air), +/-8kV(Contact) | |
| Surge | 3.84 kV (impedance 12 ohm 1.2/50us waveform) | |
| Operating System | Windows | Windows 10 |
| Linux | Supports by project | |
| Environment | Operating Temperature | • 35W TDP Processor: -40°C to 70°C • 51~65W TDP Processor: -40°C to 45°C * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | -40°C to 85°C | |
| Relative Humidity | 95%RH @ 70°C (non-Condensing) | |
| Shock | Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | |
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | |
| MTBF | 396,565 Hours | |
| Certification | EMC | CE, FCC Class A |
| Safety | LVD (EN60950-1) (Pending) | |
| Railway | EN50155, EN50121-3-2 | |
订购信息
Available Models
Package Checklist
Optional Modules & Accessories
| Model No. | Product Description |
| DS-1201-R10 | 8th Generation Intel Core Series Processors, High Performance, Expandable and Modular Rugged Embedded Computer with 1x PCI/PCIe Expansion Slot |
Package Checklist
| √ DS-1201 Embedded System x 1 | √ Power Terminal Block Connector x 1 |
| √ Utility DVD Driver x1 | √ Remote Power On/Off Terminal Block Connector x 1 |
| √ Heat Sink Pack x 1 | √ Remote Power Reset Terminal Block Connector x 1 |
| √ Screw Pack x 1 | √ Fan Terminal Block Connector x 1 |
| √ Wall Mount Kit x1 | √ DVI-I to VGA Adaptor |
Optional Modules & Accessories
| Model No. | Description |
| CFM-PoE03 | CFM Module with PoE Function, Individual Port 25.5W for DS-1200 Series |
| CFM-IGN101 | CFM Module with Power Ignition Sensing Function, 12V/24V Selectable for DS-1200/ DS-1100/ P1101 Series |
| CMI-LAN01/UB1012 | CMI Module with 4x Intel I210-AT GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout for DS-1200 Series |
| CMI-M12LAN01/UB1010 | CMI Module with M12 Connector, 4x Intel GbE LAN / 1x Universal Bracket with 4x M12 Cutout for DS-1200 Series |
| CMI-DIO02/UB1018 | CMI Module with 16DIO (8in 8out) / 1x Universal Bracket with DIO Cutout for DS-1200 Series |
| CMI-COM02/UB1004 | CMI Module with 4x RS232/422/485 Ports (Support 5V/12V) / 1x Universal Bracket with 4x DB9 Cutout for DS-1200 Series |
| CMI-ICOM01/UB1004 | CMI Module with 4x Isolated RS232/422/485 Ports (Support 5V/12V) / 1x Universal Bracket with 4x DB9 Cutout for DS-1200 Series |
| MEC-COM-M212-DB9/UB0303 | Mini-PCIe Module with 2x RS-232 Ports, 1x Standard DB9 Cable / 2x Universal Bracket each with 1x DB9 Cutout for DS / P1000 Series |
| MEC-USB-M002-30/UB0314 | Mini-PCIe Module with 2x USB 3.0 Ports, 1x 30cm cable / 1xUniversal Bracket with 2x USB Cutout for DS Series |
| MEC-LAN-M002-30/UB0311 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout for DS Series |
| FAN-EX101 | External Fan with 4pin Terminal Block Plug, Mounting Bracket, Support smart fan |
| PAH01 | Power Adapter Holder for GST120A24 |
| PAH02 | Power Adapter Holder for GST220A24 |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI |
| RC-E16-01 | Riser Card with 1x PCIex16 Slot |
| RC-PI-01 | Riser Card with 1x PCI Slot |
