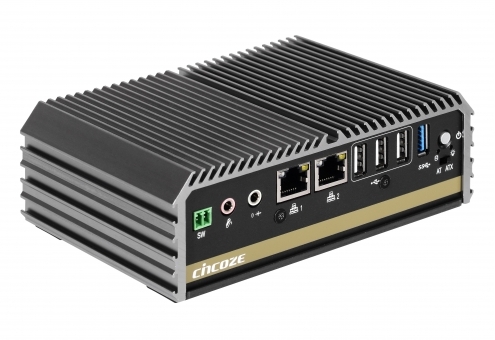

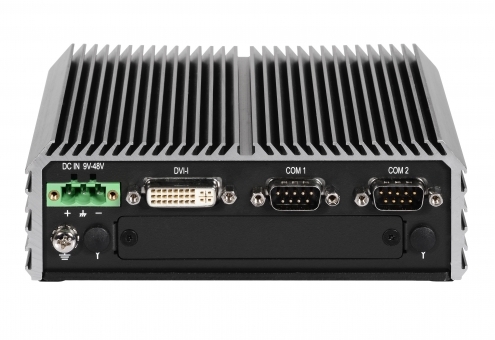

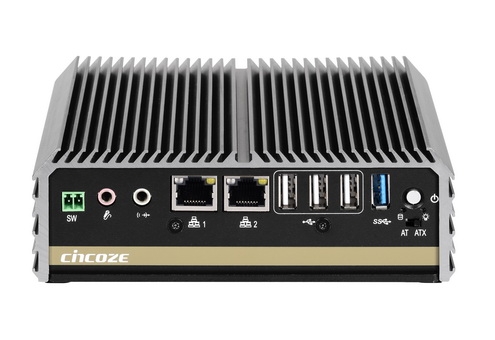

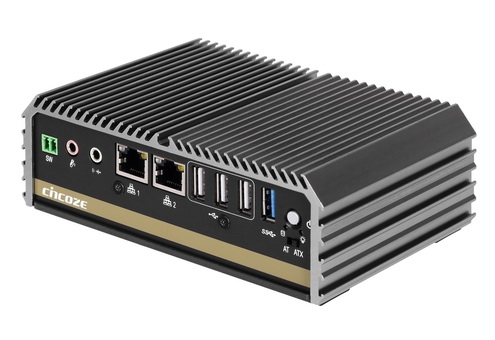

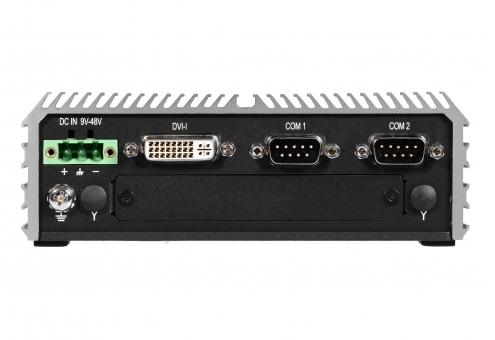

DA-1000-J19（AMR专用）
英特尔凌动J1900处理器，体积小，丰富的I O扩展
产品特点
- Onboard Intel® Celeron® Processor J1900 Quad Core 2.42GHz
- One DDR3L SO-DIMM Support DDR3L 1333MHz Up to 8G
- Dual Intel® I210 GbE LAN Ports, Support WoL, Teaming, Jumbo Frame, PXE
- Ultra Compact Size (150x105x56.02mm)
- Support Dual Display, Output from One DVI-I Port
- Support -25˚C~70˚C Extended Operating Temperature
- Support 9~48VDC Input, Support AT/ATX Power Mode
- CMI (Combined Multiple I/O) Interface for I/O Module Expandability
- Various Mounting Options (VESA, DIN-Rail, Side/Wall Mounting)
产品介绍
DA-1000系列是一款超小型无风扇嵌入式计算机，采用了英特尔凌动处理器;它集成了双显示器的高清图形处理器。这在预算上带来经济上的优势同时也能满足工业的需要。DA-1000系列支持多个I / O(CMI)接口和模块，这些接口和模块是专为灵活的I / O扩展功能而设计的，它允许用户根据他们的需要扩展不同的I / O。CMI模块包括COMs、DIO、DisplayPort、DVI、LPT / PS2或VGA。由于它坚固的计算系统、宽范围直流电源输入（从9V至48V）、冲击和振动高耐受性的,DA-1000系列也适合部署在恶劣的环境下关键的应用中，而且它是完全免维护的。
详细规格
| Model Name | DA-1000-J19 | |
| Processor System | CPU | Intel® Celeron® J1900 |
| Frequency | 2.42 GHz | |
| Core Number | 4 | |
| BIOS | AMI 64Mbit SPI | |
| Chipset | - | |
| Memory | Technology | DDR3L 1333MHz (un-buffered and non-ECC) |
| Max. Capacity | 8 GB | |
| Socket | 1x 204-Pin SO-DIMM | |
| Display | Dual Display Supported | 1x DVI-I (1x DVI-D and 1x VGA with optional split cable) |
| Expansion | PCI | - |
| PCIe | - | |
| Mini PCIe | 2x Full-size Mini-PCIe | |
| Ethernet | Controller | 2x Intel® GbE1: Intel I210-AT GbE LAN Port. Support Wake-on-LAN, Jumbo Frame and PXE |
| PoE | - | |
| Speed | 10/100/1000 Mbps | |
| Audio | Codec | Realtek ALC888S |
| Connector | 1x Mic-in and 1x Line-out | |
| WatchDog Timer | Software Programmable Supports 1~255 sec. System Reset | |
| Storage | SSD / HDD | 1x 2.5" SATA Bay |
| mSATA | 1x Internal mSATA / Internal SIM Socket (shared by one Mini-PCIe socket) | |
| SIM Socket | ||
| I/O Ports | USB 3.0 | 1 |
| USB 2.0 | 3 | |
| COM Port | 2 (DB9, RS-232/RS-422/RS-485 with Auto Flow Control) | |
| Antenna Hole | 2 | |
| Power Switch | 1 | |
| AT/ATX Switch | 1 | |
| External Fan Connector | - | |
| Remote Power On/Off and Remote Power Reset |
Yes | |
| Universal I/O Bracket | 1 | |
| Power Requirement |
Power Type | AT / ATX |
| Power Supply Voltage | 9~48VDC | |
| Connector | 1x 3-pin Terminal Block 1x 2-pin Terminal Block Connector (For Remote Power On/Off) |
|
| Power Adaptor | Optional AC/DC 12V/5A, 60W | |
| Power Consumption | Typical 8.3W, Max.15W | |
| Environment | Operating Temperature | Ambient with Air Flow: -25°C to 70°C (with Industrial Grade Peripherals) |
| Storage Temperature | -40°C to 85°C | |
| Relative Humidity | 95% RH @ 40˚C (Non-condensing) | |
| Shock | 50 Grms (with SSD According to IEC 60068-2-27, Half Sine, 11ms Duration) | |
| Vibration | Random: 5 Grms (with SSD According to IEC 60068-2-64, 5~500Hz, 1 hr/axis) | |
| Physical | Dimension (WxDxH) | 150 x 105 x 56.02 mm |
| Weight | 0.86kg | |
| Construction | Aluminum Chassis with Fan-less Design | |
| Mounting | VESA/Wall Mounting (Optional DIN-Rail/Side Mounting) | |
| Operating System | Windows | • Windows® 10 • Windows® 8.1 • Windows® 7 |
| Certification | EMC | • CE • FCC Class A |
订购信息
Available Models
| Model Name | Product Description |
| DA-1000-J19 | Intel® Celeron® J1900 Affordable Fanless Embedded Computer |
Package Checklist
| DA-1000-J19 |
| √ DA-1000-J19 Embedded System x 1 |
| √ Utility DVD Driver x 1 |
| √ Power Terminal Block Connector x 1 |
| √ Remote Power On/Off Terminal Block Connector x 1 |
| √ DVI-I to VGA Adapter x 1 |
| √ Screw Pack x 1 (For HDD/Mini-PCIe/Wall & VESA Mounting) |
| √ Wall Mount Kit x 1 |
Optional Modules & Accessories
| Model No. | Description |
| CMI-COM102/UB0403 | CMI Module with 2x RS232/422/485, 1x Universal Bracket (96 x 15 mm) |
| CMI-DIO100/UB0415 | CMI Module with 8x Optical Isolated DIO (4 in/4 out), 1x Universal Bracket (96 x 15 mm) |
| CMI-DP101/UB0406 | CMI Module with 1x DisplayPort, 1x Universal Bracket (96 x 15 mm) |
| CMI-DVI101/UB0407 | CMI Module with 1x DVI-D Connector, 1x Universal Bracket (96 x 15 mm) |
| CMI-LPPS102/UB0409 | CMI Module with 1x LPT Port, 1x PS/2, 1x Universal Bracket (96 x 15 mm) |
| CMI-VGA101/UB0416 | CMI Module with 1x VGA Port, 1x Universal Bracket (96 x 15 mm) |
| MEC-LAN-M002-R1/UB0411 | Mini-PCIe Module with 2x LAN Ports, 1x Universal Bracket (96 x 15 mm) |
| MEC-USB-M002/UB0414 | Mini-PCIe Module with 2x USB 3.0 Ports, 1x Universal Bracket (96 x 15 mm) |
| SIDE-DA | DA Series Side Mount Kit |
| DINRAIL | Diamond Series DIN-Rail Kit |
