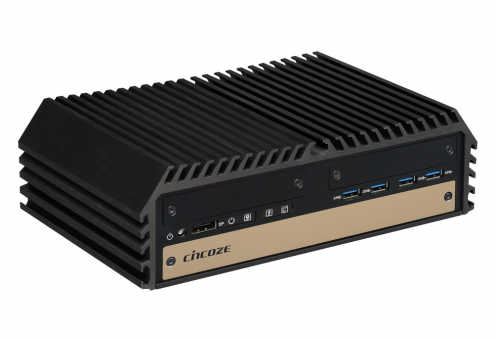

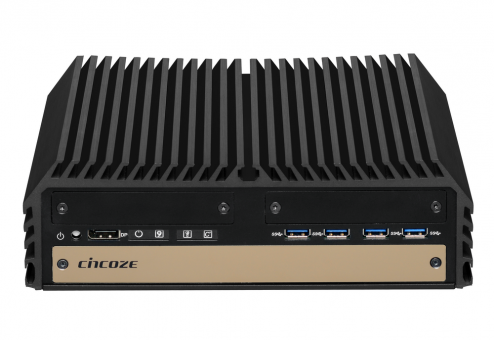

DX-1000（支持M12）
英特尔I7 6代 7代Xeon 和core 处理器，极致型紧凑型能
产品特点
支持采用Intel C236芯片组的第7/6代Intel Xeon / Core LGA1151插槽式处理器
2个DDR4-2133 / 2400 SO-DIMM插槽，最高32GB内存
三重独立显示（1x DVI-I，2x DisplayPort）
2x 2.5“热插拔SATA III HDD / SSD托架，支持RAID 0/1

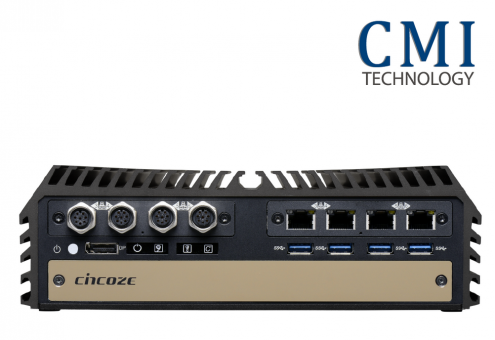

用于RJ45 / M12 GbE LAN，COM和DIO扩展的3x CMI接口
用于电源点火感应和PoE功能的2x CFM接口
4x全尺寸Mini-PCIe插槽，用于无线和I / O扩展
EN50155 / EN50121-3-2铁路应用认证
E-Mark（E13，No.10R-0514546）车载应用认证
产品介绍
Cincoze DX-1000是坚固耐用的工作站系列，基于LGA 1151插槽和支持第7 /第6代Intel Xeon和Intel Core 处理器的Intel C236芯片组，DX-1000系列通过Intel Gen9图形引擎支持4K分辨率两个DDR4 SO-DIMM插槽，最高可达32GB内存，可为高端应用提供出色的计算性能。 。

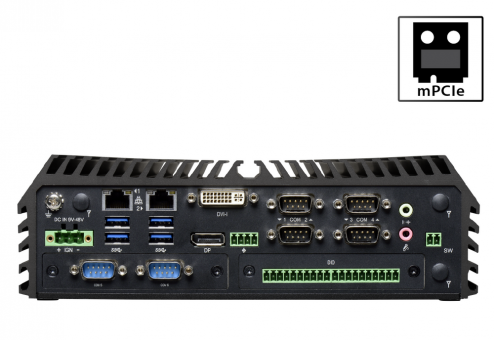

尽管体积非常紧凑但I / O丰富，包括1x DVI-I，2xDP显示端口，2x GbE LAN端口，4x RS232 / 422/485串行端口和8x USB 3.0端口，Cincoze提供其独有的CMI（组合多I / O）和CFM（控制功能模块）技术使DX-1000系列成为高度可扩展的系统，适用于特定应用，如工业自动化，运输，机器视觉，车载和移动监控。DX-1000系列可通过多功能模块扩展，具有有源串行端口， 光隔离数字I / O，多个GbE LAN，M12连接器，以太网供电和电源点火感应功能。
工作温度范围宽（-40~ + 70°C），宽范围直流电源输入（9~48 VDC），高振动和冲击耐受性（5/50 Grms），坚固的外壳、无风扇无线缆无跳线设计，使DX-1000系列非常适合应用在恶劣环境中。
尽管体积非常紧凑但I / O丰富，包括1x DVI-I，2xDP显示端口，2x GbE LAN端口，4x RS232 / 422/485串行端口和8x USB 3.0端口，Cincoze提供其独有的CMI（组合多I / O）和CFM（控制功能模块）技术使DX-1000系列成为高度可扩展的系统，适用于特定应用，如工业自动化，运输，机器视觉，车载和移动监控。DX-1000系列可通过多功能模块扩展，具有有源串行端口， 光隔离数字I / O，多个GbE LAN，M12连接器，以太网供电和电源点火感应功能。
工作温度范围宽（-40~ + 70°C），宽范围直流电源输入（9~48 VDC），高振动和冲击耐受性（5/50 Grms），坚固的外壳、无风扇无线缆无跳线设计，使DX-1000系列非常适合应用在恶劣环境中。
详细规格
| Model Name | DX-1000 | |
| System | Processor | 7th Generation Intel CPU (Kaby Lake-S) - Intel Core i3-7100T: 3M Cache, 3.4 GHz, TDP 35W - Intel Core i5-7500T: 6M Cache, up to 3.3 GHz, TDP 35W - Intel Core i7-7700T: 8M Cache, up to 3.8 GHz, TDP 35W - Intel Core i3-7300: 4M Cache, 4.0 GHz, TDP 51W - Intel Core i5-7500: 6M Cache, up to 3.8 GHz, TDP 65W - Intel Core i7-7700: 8M Cache, up to 4.2 GHz, TDP 65W - Intel Xeon E3-1275 v6: 8M Cache, up to 4.2 GHz, TDP 73W 6th Generation Intel CPU (Skylake-S) - Intel Core i3-6100TE: 4M Cache, 2.7 GHz, TDP 35W - Intel Core i5-6500TE: 6M Cache, up to 3.3 GHz, TDP 35W - Intel Core i7-6700TE: 8M Cache, up to 3.4 GHz, TDP 35W - Intel Xeon E3-1268L v5: 8M Cache, up to 3.4 GHz, TDP 35W - Intel Core i3-6100: 3M Cache, 3.7 GHz, TDP 51W - Intel Core i5-6500: 6M Cache, up to 3.6 GHz, TDP 65W - Intel Core i7-6700: 8M Cache, up to 4.0 GHz, TDP 65W - Intel Xeon E3-1225 v5: 8M Cache, up to 3.7 GHz, TDP 80W - Intel Xeon E3-1275 v5: 8M Cache, up to 4.0 GHz, TDP 80W |
| Chipset | Intel C236 | |
| Memory | 2x DDR4-2133/2400MHz SO-DIMM Sockets, Support up to 32 GB (Un-buffered and Non-ECC type) | |
| Graphics | ．Integrated Intel HD Graphics ．Three Independent Display (1x DVI-I, 2x DisplayPort) |
|
| Audio | • Realtek ALC888 • High Definition Audio |
|
| BIOS | AMI 16MB BIOS | |
| I/O Interface | DVI | 1x DVI-I connector, Up to 1920x1080@60Hz |
| DP | 2x DP connector, Up to 3840 x 2160@30Hz | |
| LAN | 2x 10/100/1000 Mbps, RJ45 GbE1: Intel I219LM GbE2: Intel I210AT Support WoL, Teaming, Jumbo frame, IEEE 1588v2, RJ45 Optional Module ．4x 10/100/1000 Mbps, RJ45 Port ．4x 10/100/1000 Mbps, M12 Port |
|
| PoE+ | Optional Module ．4x PoE+, Individual port 25.5W (with CMI-LAN01, RJ45 Port) ．4x PoE+, Individual port 25.5W, (with CMI-M12LAN01, M12 Port) |
|
| Serial Port | 4x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9 Optional Module ．2x RS-232/422/485, DB9 Connector ．4x RS-232/422/485, DB9 Connector |
|
| USB | 8x USB 3.0 (Type-A) | |
| Optical Isolated DIO | Optional Module ．16x Optical Isolated DIO(8DI, 8DO), 20 pin Terminal Block |
|
| Line-Out | 1x Line-Out, Phone Jack 3.5mm | |
| Mic-In | 1x Mic-In, Phone Jack 3.5mm | |
| Power Button | 1x ATX Power On/Off Button | |
| AT/ATX Switch | 1x AT/ATX Mode Switch | |
| Rest Button | 1x Rest Button | |
| Clear CMOS Switch | 1x Clear CMOS Switch | |
| Remote Power On/Off Connector | 1x Remote Power On/Off Connector, 2-pin Terminal Block | |
| External FAN Connector | 1x External FAN Connector, 4-pin Terminal Block (support smart fan by BIOS) | |
| Storage | SSD/HDD | 2x SATA III (6Gbps) for 2.5” HDD/SSD |
| mSATA | 4x mSATA (Shared by Mini-PCIe Socket) (Gen2) | |
| RAID | Support S/W RAID 0, 1, 5 & 10 | |
| Expansion | PCI/ PCIe | - |
| CFM (Control Function Module) Interface | 1x CFM Interface for CFM Modules | |
| CMI (Combine Multiple I/O) Interface | 3x CMI Interface for CMI Modules | |
| Mini PCI Express | 4x Full-size Mini-PCIe Sockets | |
| SIM Socket | 1x SIM Socket | |
| Antenna Holes | 3x Antenna Holes | |
| Other | Instant Reboot | Support 0.2sec |
| Power Ignition Sensing | Optional Module ．CFM with Delay Time Management and Selectable 12V/24V, Dip Switch |
|
| Super Cap | SuperCap Integrated for CMOS Battery-free Operation | |
| Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset | |
| Power Requirement | Power Type | AT/ATX |
| Power Input Voltage | 9~48VDC | |
| Connector | 3-pin Terminal Block | |
| Power Adapter | Optional AC/DC Adapter ．AC/DC 24V/5A, 120W ．AC/DC 24V/9.2A, 220W |
|
| Physical | Dimension (WxDxH) | 242 x 174 x 77 mm |
| Weight Information | 3.6 kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | Wall / VESA / DIN Rail / Side | |
| Unibody Design | Yes | |
| Fanless Design | Yes | |
| Jumper-less Design | Yes | |
| Cable-less Design | Yes | |
| Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | 58V | |
| Over Current Protection | 15A | |
| ESD Protection | +/-15kV(Air), +/-8kV(Contact) | |
| Surge Protection | 3.84 kV (impedance 12 ohm 1.2/50us waveform) | |
| Operating System | Windows | Windows 10 Windows 8.1 Windows 7 |
| Linux | Support by project | |
| Environment | Operating Temperature | 7th Generation Intel CPU (Kaby Lake-S) - 35W TDP CPU: -40°C to 50°C - 51W~65W TDP CPU: -40°C to 45°C - 73W TDP CPU: -40°C to 40°C 6th Generation Intel CPU (Skylake-S) - 35W TDP CP: -40°C to 70°C - 51W~65W TDP CPU: -40°C to 55°C - 80W TDP CPU: -40°C to 40°C (With Extended Temperature Peripherals; Ambient with Air Flow; According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) |
| Storage Temperature | -40°C to 85°C | |
| Relative Humidity | 40°C @ 95% RH (non-Condensing) | |
| Shock | Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) |
|
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) |
|
| EMC | CE, FCC Class A | |
| Safety | LVD (EN60950-1) (Pending) | |
| Fire Protection | EN45545-2 | |
| Railway | EN50155, EN50121-3-2 | |
| In-Vehicle | E-Mark (Pending) | |
| MTBF | - Time:457,941 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 |
|
订购信息
Available Models
Package Checklist
Optional Accessories
| Model No. | Product Description |
| DX-1000 | 7/6th Generation Intel Xeon and Core Processors, Extreme Performance, Compact and Modular Rugged Workstation |
Package Checklist
| √ DX-1000 Rugged Workstation x1 | √ Power Terminal Block Connector x1 |
| √ CPU Heatsink Thermal Pad x1 | √ Remote Power On/Off Terminal Block Connector x1 |
| √ Utility DVD Driver x1 | √ Fan Terminal Block Connector x1 |
| √ Screw Pack x1 | √ DVI-I to VGA Adaptor x1 |
| √ Wall Mounting Kit x1 |
Optional Accessories
| Model No. | Description |
| CFM-IGN01 | CFM Module with Power Ignition Sensing Control Function, Select 12V/24V |
| CFM-PoE01 | CFM Module with PoE Control Function, Individual Port 25.5W |
| CMI-COM01/UB0903 | CMI Module with 2x RS232/422/485, 1x Universal Bracket [97 x 18 mm] |
| CMI-DIO01/UB0918 | CMI Module with 16x Optical Isolated DIO (8 in/8 out), 1x Universal Bracket [97 x 18 mm] |
| CMI-LAN01/UB0912 | CMI Module with 4x RJ45 Ports, Intel® I210-AT GbE LAN, 1x Universal Bracket [97 x 18 mm] |
| CMI-M12LAN01/UB0910 | CMI Module with 4x M12 A Coded Connectors, Intel® I210-AT GbE LAN, 1x Universal Bracket [97 x 18 mm] |
| MEC-COM-M212/UB0903 | Mini-PCIe Module with 2x COM Ports, 1x Universal Bracket [97 x 18 mm] |
| MEC-COM-M334/ 2xUB0903 | Mini-PCIe Module with 4x COM Ports, 2x Universal Brackets [97 x 18 mm] |
| MEC-FIR-M003/UB0901 | Mini-PCIe Module with 1x 1394A Port, 2x 1394B Ports, 1x Universal Bracket [97 x 18 mm] |
| MEC-LAN-M002/UB0911 | Mini-PCIe Module with 2x LAN Ports, 1x Universal Bracket [97 x 18 mm] |
| MEC-USB-M002/UB0914 | Mini-PCIe Module with 2x USB 3.0 Ports, 1x Universal Bracket [97 x 18 mm] |
| FAN-EX100 | External Fan with 4pin Terminal Block Plug, Mounting Bracket |
| GS120A24-CIN1 | Adapter AC/DC 24V 5.0A 120W with 3pin Terminal Block Plug 5.0mm Pitch, with Tubes |
| GS220A24-CIN1 | Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with Tubes |
| Side-DX | DX Series Side Mount Kit |
| DIN01 | Dinrail Mount Kit, KMRH-K175 |
