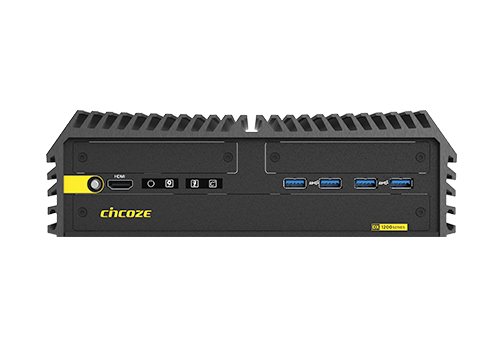

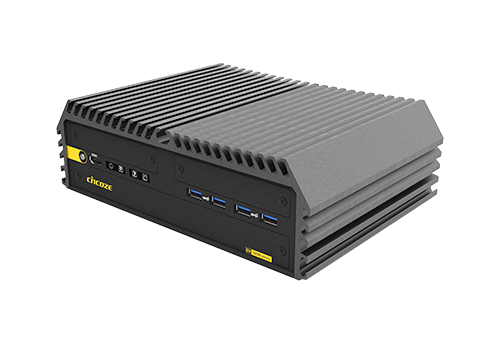

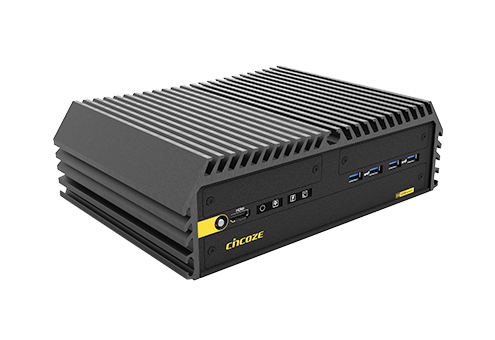

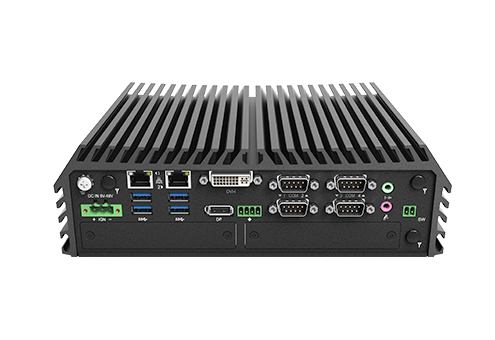

DX-1200

第 12 代 Intel® Core™ 系列高效能 & 紧凑型强固型嵌入式电脑

产品特点

Intel® 第 12 代 Alder Lake-S Core™ i9/i7/i5/i3 处理器（最大 65 W TDP）
2 x DDR5 SO-DIMM 插槽, 支持 ECC/非 ECC 类型内存, 高达 4800MHZ, 64GB
4 路独立显示 (HDMI / DP / DVI-I)
1x M.2 Key E Type 2230 Socket for Intel CNVi / Wireless Module
支持 I/O 模块扩展的 CMI 技术
支持电源点火感应和 PoE 功能的 CFM 技术
宽工作温度 -40°C 至 70°C
安全标准：UL、c-UL、CB、IEC、EN 62368-1

产品介绍
详细规格
订购信息

产品介绍

DX-1200 是款无风扇嵌入式电脑，在其紧凑体积下充分将效能与强固发挥到最大化。由于这些出色的特性，DX-1200 成为了智能制造、机器视觉和边缘 AI 应用的理想选择。DX-1200 在效能上可搭载 Intel® 第 12 代 Alder Lake-S Core™ 处理器（TDP 高达 65 W）及 DDR5 4800 MHz 内存，展现了高速流畅的运算效能。在功能方面，凭借丰富的原生 I/O 及模块化扩展设计，可以有效且实时地满足多元化的应用需求。

卓越的运算效能

——

DX-1200 可搭载 Intel® 7 制程的第 12 代 Core™ i9/i7/i5/i3（Alder Lake-S）处理器，可拥有高达 16 核心（8P + 8E）及 24 线程的配置，处理效能是 Comet Lake-S 的 1.35 倍以上。此外，透过 Intel® Xe 架构的 UHD 770 显示芯片，在 GPU 图像分类推理效能则是 Comet Lake-S 的 2.8 倍，非常适用于 AI 和多种边缘运算应用，展现卓越的处理效能。

高速、安全兼备的内存

——

两组 DDR5 SO-DIMM 插槽可支持高达 64GB 4800 MHz 内存。此外，还支持内存 ECC 错误修正技术（Error Correction Code），对于稳定性和可靠度要求极高的工控领域至关重要。

丰富、多元的扩展性

——

因应广泛的工业应用需求，DX-1200 提供了 1x M.2 Key E 插槽和 2x Mini PCIe 插槽，除了支持全方位的无线传输方式，如 WiFi、GNSS、4G 和蓝牙外，还可透过 Mini PCIe 扩展槽安装所需的 I/O 扩展卡、影像撷取卡等，以满足不同的应用需求。

高速、可靠的数据传输

——

为了有效提高视频或大型档案的传输效率，DX-1200 配备最多 4 个高速 10Gbps LAN。而面对多个网络设备的应用环境需求，则提供最多 8x PoE，可以通过同一线缆提供数据和电力，有效降低了布线的难度。

强固设计稳健可靠

——

DX-1200 的强固性可从其工业级保护设计及不同领域行业认证中体现。除了宽温（-40 ~ 70°C）、宽电压（9 - 48 VDC）、过电压、过电流和静电保护（ESD）等特点，还符合军规冲击震动标准 MIL-STD-810G。此外，为确保产品的安全可靠，也获得全球广泛认可的 UL 62368-1 安全认证。为提供更安心的轨道交通解决方案，还通过 EN 50155 中的电磁兼容（EMC）EN 50121-3-2 标准以及 EN 45545-2 防火标准。

详细规格

Model Name		DX-1200
System	Processor	12th Generation Intel® Alder Lake-S Series CPU: - Intel® Core™ i9-12900E 16 Cores Up to 5 GHz, TDP 65W - Intel® Core™ i7-12700E 12 Cores Up to 4.8 GHz, TDP 65W - Intel® Core™ i5-12500E 6 Cores Up to 4.5 GHz, TDP 65W - Intel® Core™ i3-12100E 4 Cores Up to 4.2 GHz, TDP 60W - Intel® Core™ i9-12900TE 16 Cores Up to 4.8 GHz, TDP 35W - Intel® Core™ i7-12700TE 12 Cores Up to 4.7 GHz, TDP 35W - Intel® Core™ i5-12500TE 6 Cores Up to 4.3 GHz, TDP 35W - Intel® Core™ i3-12100TE 4 Cores Up to 4.0 GHz, TDP 35W - Intel® Pentium® G7400E 2 Cores Up to 3.6 GHz, TDP 46W - Intel® Pentium® G7400TE 2 Cores Up to 3.0 GHz, TDP 35W - Intel® Celeron® G6900E 2 Cores Up to 3.0 GHz, TDP 46W - Intel® Celeron® G6900TE 2 Cores Up to 2.4 GHz, TDP 35W
	Chipset	Intel R680E Chipset
	Memory	2x DDR5 4800 MHz SO-DIMM Socket, Supports Un-buffered and ECC Type, Up to 64GB
	BIOS	AMI BIOS
Graphics	Graphics Engine	Integrated Intel® UHD Graphics 770: Core™ i9/i7/i5 Integrated Intel® UHD Graphics 730: Core™ i3 Integrated Intel® UHD Graphics 710: Pentium®/Celeron®
	Maximum Display Output	Supports Quad Independent Display
	DVI	1x DVI-I Connector - VGA: 1920 x 1080 @ 60 Hz - DVI-D: 1920 x 1200 @ 60 Hz
	DP	1x DP Connector: 4096 x 2304 @ 60Hz * Verified maximum resolution: 3840 x 2160 @ 60Hz
	HDMI	1 x HDMI Connector (3840x2160@30Hz)
Audio	Audio Codec	Realtek® ALC888, High Definition Audio
	Line-out	1x Line-out, Phone Jack 3.5mm
	Mic-in	1x Mic-in, Phone Jack 3.5mm
I/O	LAN	2x 1GbE LAN, RJ45(Supports Wake on LAN, PXE) - GbE1: Intel® I219 - GbE2: Intel® I210
	COM	4x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
	USB	4x 10Gbps USB 3.2 Gen2, Type A 4x 5Gbps USB 3.2 Gen1, Type A
Storage	SSD/HDD	2x 2.5" SATA HDD/SSD Bay (SATA 3.0)
	mSATA	2x mSATA Socket ( SATA 3.0, shared by Mini-PCIe socket )
	RAID	Support RAID 0/1/5/10
Expansion	Mini PCI Express	2x Full-size Mini-PCIe Socket
	M.2 E Key Socket	1x M.2 Key E Type 2230 Socket, Support Intel CNVi Module
	SIM Socket	1x SIM Socket
	CMI (Combined Multiple I/O) Interface	2x High Speed CMI Interface for optional CMI Module Expansion 1x Low Speed CMI Interface for optional CMI Module Expansion
	CFM (Control Function Module) Interface	1x CFM IGN Interface for optional CFM-IGN Module Expansion
Other Function	External FAN Connector	1x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS)
	Clear CMOS Switch	1x Clear CMOS Switch
	Reset Button	1x Reset Button
	Instant Reboot	Support 0.2sec Instant Reboot Technology
	Watchdog Timer	Software Programmable Supports 256 Levels System Reset
Power	Power Button	1 x ATX Power On/Off Button
	Power Mode Switch	1 x AT/ATX Mode Switch
	Power Input	9 - 48VDC, 3-pin Terminal Block
	Remote Power On/Off	1 x Remote Power On/Off, 2-pin Terminal Block
Physical	Dimension ( W x D x H )	242 x 173 x 75 mm
	Weight Information	3.05 kg
	Mechanical Construction	Extruded Aluminum with Heavy Duty Metal
	Mounting	Wall / DIN-RAIL / VESA / Side Mount
	Physical Design	• Fanless Design • Cableless Design • Jumper-less Design • Unibody Design
Reliability & Protection	Reverse Power Input Protection	Yes
	Over Voltage Protection	• Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover
	Over Current Protection	15A
	CMOS Battery Backup	SuperCap Integrated for CMOS Battery Maintenance-free Operation
	MTBF	394,488 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3
Operating System	Windows	Windows® 10
Operating System	Linux	Supports by project
Environment	Operating Temperature	• 35W TDP Processor: -40°C to 70°C • 65W TDP Processor: -40°C to 50°C (With External Fan Kit) - With extended temperature peripherals; Ambient with air flow - According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
	Storage Temperature	-40°C to 85°C
	Relative Humidity	95% RH @ 70°C (Non-condensing)
	Shock	MIL-STD-810G (Pending)
	Vibration	MIL-STD-810G (Pending)
	EMC	• CE, UKCA, FCC, ICES-003 Class A • EN 50155 (EN 50121-3-2 Only) • E-Mark
	Safety	UL, cUL, CB, IEC/EN 62368-1 (Pending)
	Fire Protection	EN 45545-2

订购信息

Available Models
Model No.	Product Description
DX-1200-R10	12th Gen. Intel® Core™ Series High Performance and Compact Rugged Embedded Computer

Package Checklist
√ DX-1200 Rugged Computer x1	√ Power Terminal Block Connector x1
√ CPU Heatsink Pack x1	√ Remote Power On/Off Terminal Block Connector x 1
√ Screw Pack x 1	√ Fan Terminal Block Connector x 1
√ Wall Mounting Kit x1	√ DVI-I to VGA Adaptor x 1

Optional Modules and Accessories
Model No.	Description
CFM-PoE01	CFM Module with PoE Control Function, Individual Port 25.5W
CFM-IGN01	CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable
CMI-LAN01-R12	CMI Module with 4x RJ45 Intel I210 1GbE LAN Ports
CMI-10GLAN05-R10	CMI Module with 2x Intel 10GbE LAN, RJ45 Port
CMI-M12LAN01-R12	CMI Module with 4 x M12 Intel I210 1GbE LAN Ports
CMI-XM12LAN01-R10	CMI Module with M12 X-Coded Connector, 4x Intel I210 1GbE LAN Ports
CMI-DIO01	CMI Module with 16DIO (8in 8out)
CMI-COM01	CMI Module with 2x RS232/422/485 (Support 5V/12V)
MEC-COM-M212-TDB9	Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Thin DB9 Cable
MEC-COM-M334-TDB9	Mini-PCIe Module with 4x RS-232/422/485 Serial Ports, 2x Thin DB9 Cable
MEC-LAN-M102-30	Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable
UB0930-R10	Universal Bracket with 4x M12 X-Coded Cutout
UB1303	Universal Bracket with 2x DB9 Cutout
UB1311	Universal Bracket with 2x RJ45 Cutout for MEC-LAN Expansion
UB1318	Universal Bracket with DIO Cutout
UB1710-R10	Universal Bracket with 4x M12 A-Coded Cutout
UB1712-R10	Universal Bracket with 4x RJ45 Cutout
UB1728-R10	Universal Bracket with 2x RJ45 Cutout for CMI-10GLAN Expansion
SIDE-DX	DX Series side mount kit
DIN01	DIN-RAIL Mount Kit, KMRH-K175
GST120A24-CIN	Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI
GST220A24-CIN	Adapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI
FAN-EX101	External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support smart fan
