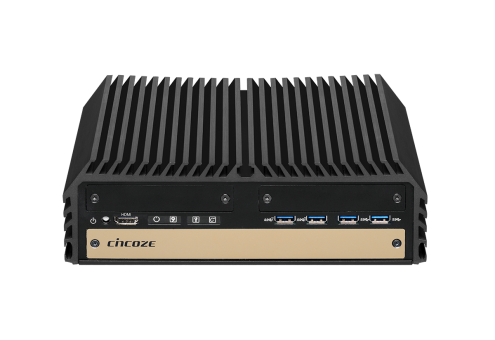

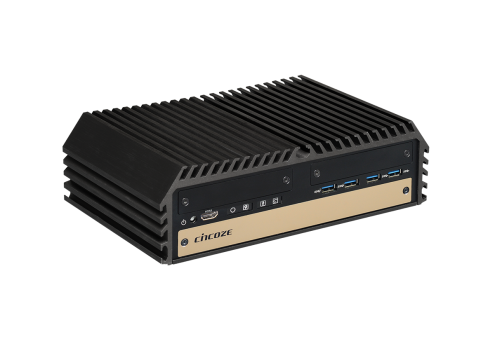

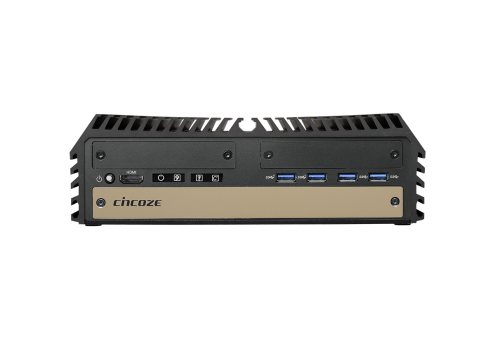

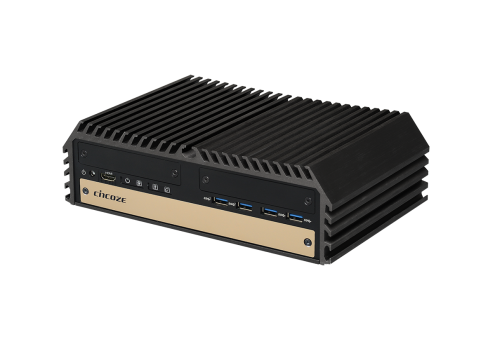

DX-1100(支持M12）
第八 九代Intel Xeon 和Core 处理器，极致性能，紧凑型和模块化坚固耐用的工作站
产品特点
- 支持第8代Intel Xeon 和Core Hexa-core处理器
- 具有4K / 2K UHD分辨率的三重独立显示器（HDMI / DP / DVI-I）
- 2x 2.5“热插拔SATA HDD / SSD托盘，3x mSATA插槽
- 2xUSB 3.1（10Gb / s），可实现终极数据传输速度
- 1个M.2 E按键插座（CNVi），3个全尺寸Mini-PCIe插座，1个SIM卡插座
- 支持I / O可扩展性的CMI接口
- 支持PoE +和电源点火感应（带可选CFM模块）
- 宽工作温度-40°C至70°C
- E-Mark，LVD EN60950-1，EN50155 / EN50121-3-2
产品介绍
Cincoze DX-1100是一款坚固耐用的工作站，专为满足高性能计算平台的需求而设计。该系统基于LGA 1151插槽和英特尔C246芯片组，支持第8代/9代英特尔至强和酷睿处理器（Coffee Lake S），具有多达8核 64GB内存容量。
尽管尺寸非常紧凑，DX-1100仍然提供模块化I / O扩展的最大灵活性，并提供具有RAID功能的双热插拔2.5“HDD / SSD硬盘，基于Cincoze独有的CFM（控制功能模块）技术， DX-1100可立即配置以太网供电和电源点火感应功能，支持高达8个M12接口，可应用于许多工业应用，如机器视觉，车载运输和移动监控。
坚固的结构，无风扇/无线/无跳线设计，宽工作温度（-40至+ 70°C），宽范围直流电源输入（9~48 VDC），高振动和冲击耐受性（5/50） Grms），DX-1100免维护，非常适合在恶劣环境中使用。
详细规格
| Model Name | DX-1100 | |
| System | Processor |
• 9th Generation Intel Coffee Lake-R S Series CPU:
- Intel® Xeon E-2278GEL 8 Cores Up to 3.9 GHz, TDP 35W
- Intel® Core i7-9700E 8 Cores Up to 4.4 GHz, TDP 65W
- Intel® Core i5-9500E 6 Cores Up to 4.2 GHz, TDP 65W
- Intel® Core i3-9100E 4 Cores Up to 3.7 GHz, TDP 65W
- Intel® Core i7-9700TE 8 Cores Up to 3.8 GHz, TDP 35W
- Intel® Core i5-9500TE 6 Cores Up to 3.6 GHz, TDP 35W
- Intel® Core i3-9100TE 4 Cores Up to 3.2 GHz, TDP 35W
• 8th Generation Intel Coffee Lake S Series CPU:
- Intel Xeon E-2176G 6 Cores Up to 4.7 GHz - 12M Cache, TDP 80W
- Intel Xeon E-2124G 4 Cores Up to 4.5 GHz - 8M Cache, TDP 71W
- Intel Core i7-8700 6 Cores Up to 4.6 GHz - 12M Cache, TDP 65W
- Intel Core i5-8500 6 Cores Up to 4.1 GHz - 9M Cache, TDP 65W
- Intel Core i3-8100 4 Cores 3.6 GHz - 6M Cache, TDP 65W
- Intel Core i7-8700T 6 Cores Up to 4.0 GHz - 12M Cache, TDP 35W
- Intel Core i5-8500T 6 Cores Up to 3.5 GHz - 9M Cache, TDP 35W
- Intel Core™ i3-8100T 4 Cores 3.1 GHz - 6M Cache, TDP 35W
- Intel Pentium® G5400 2 Cores 3.7 GHz - 4M Cache, TDP 58W
- Intel Pentium® G5400T 2 Cores 3.1 GHz - 4M Cache, TDP 35W
- Intel Celeron® G4900 2 Cores 3.1 GHz - 2M Cache, TDP 54W
- Intel Celeron® G4900T 2 Cores 2.9 GHz - 2M Cache, TDP 35W
|
| Chipset | Intel C246 | |
| Memory | • 2x DDR4-2666/2400 MHz SO-DIMM Sockets • Support up to 32 GB (Un-buffered and Non-ECC type) * i3/Pentium/Celeron: DDR4 2400 MHz |
|
| Graphics | • Integrated Intel UHD Graphics (Xeon: UHD P630; i7/i5/i3: UHD 630; Pentium/Celeron: UHD 610) • Supports Triple Independent Display (DVI-I/DisplayPort/HDMI) |
|
| Audio | Realtek ALC888, High Definition Audio | |
| BIOS | AMI 32 MB BIOS | |

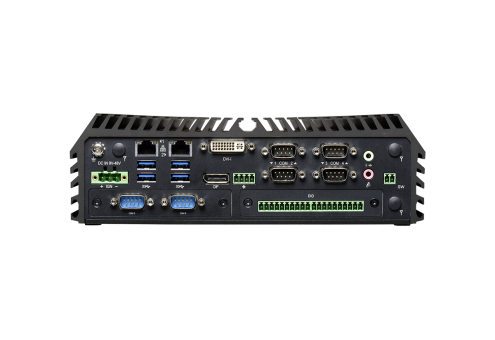

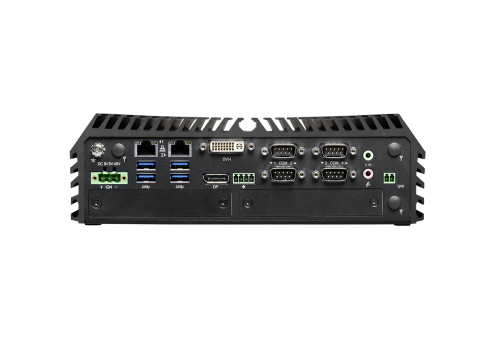

| I/O Interface | DVI | 1x DVI-I Connector (VGA: 1920 x1080 @ 60 Hz; DVI-D: 1920 x1200 @ 60 Hz) |
| DP | 1x DisplayPort Connector (3840 x 2160 @30Hz) | |
| HDMI | 1x HDMI Connector (3840 x 2160 @30Hz) | |
| LAN | 2x GbE LAN (Support WoL, Teaming, Jumbo Frame, IEEE 1588v2 and PXE), RJ45 - GbE1: Intel I219-LM - GbE2: Intel I210-IT Optional Module ．4x 10/100/1000 Mbps, RJ45 Port ．4x 10/100/1000 Mbps, M12 Port |
|
| PoE+ | Optional Module ．4x PoE+, Individual port 25.5W (with CMI-LAN01, RJ45 Port) ．4x PoE+, Individual port 25.5W, (with CMI-M12LAN01, M12 Port) |
|
| Serial Port | 4x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9 Optional Module ．2x RS-232/422/485, DB9 Connector |
|
| USB | 2x USB 3.1 (Type-A) 6x USB 3.0 (Type-A) |
|
| Optical Isolated DIO | Optional Module ．16x Optical Isolated DIO(8DI, 8DO), 20 pin Terminal Block |
|
| Line-Out | 1x Line-Out, Phone Jack 3.5mm | |
| Mic-In | 1x Mic-In, Phone Jack 3.5mm | |
| Power Button | 1x ATX Power On/Off Button | |
| AT/ATX Switch | 1x AT/ATX Mode Switch | |
| Rest Button | 1x Rest Button | |
| Clear CMOS Switch | 1x Clear CMOS Switch | |
| Remote Power On/Off Connector | 1x Remote Power On/Off Connector, 2-pin Terminal Block | |
| External FAN Connector | 1x External FAN Connector, 4-pin Terminal Block (support smart fan by BIOS) | |
| Storage | SSD/HDD | 2x 2.5" Front Accessable SATA HDD/SSD Bay (SATA 3.0) |
| mSATA | 3x mSATA Socket (SATA 3.0, shared by Mini-PCIe socket) | |
| RAID | Supports S/W RAID 0, 1, 5 & 10 | |
| Expansion | PCI/ PCIe | - |
| CFM (Control Function Module) Interface | 1x CFM Interface for CFM Modules | |
| CMI (Combine Multiple I/O) Interface | 3x CMI Interface for CMI Modules | |
| Mini PCI Express | 3x Full-size Mini-PCIe Sockets | |
| M.2 Socket | 1x M.2 2230 Socket (Key E) | |
| SIM Socket | 1x SIM Socket | |
| Antenna Holes | 3x Antenna Holes | |
| Other | Instant Reboot | Support 0.2sec |
| Power Ignition Sensing | Optional Module ．CFM with Delay Time Management and Selectable 12V/24V, Dip Switch |
|
| Super Cap | SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| Watchdog Timer | Software Programmable Supports 256 Levels System Reset | |
| Power Requirement | Power Type | AT/ATX |
| Power Input Voltage | 9~48VDC | |
| Connector | 3-pin Terminal Block | |
| Power Adapter | Optional AC/DC Adapter ．AC/DC 24V/5A, 120W ．AC/DC 24V/9.2A, 220W |
|
| Physical | Dimension (WxDxH) | 242 x 174 x 77 mm |
| Weight Information | 3.6 kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | Wall / VESA / DIN Rail / Side | |
| Unibody Design | Yes | |
| Fanless Design | Yes | |
| Jumper-less Design | Yes | |
| Cable-less Design | Yes | |
| Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | 58V | |
| Over Current Protection | 15A | |
| ESD Protection | +/-15kV(Air), +/-8kV(Contact) | |
| Surge Protection | 3.84 kV (impedance 12 ohm 1.2/50us waveform) | |
| Operating System | Windows | Windows 10 |
| Linux | Support by project | |
| Environment | Operating Temperature | 35W TDP Processor: -40°C to 70°C 54~65W TDP Processor: -40°C to 45°C 71~80W TDP Processor: -40°C to 40°C * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | -40°C to 85°C | |
| Relative Humidity | 95% RH @ 40°C (Non-condensing) | |
| Shock | Operating, 50 Grms, Half-sine 11 ms Duration * w/ SSD, according to IEC60068-2-27 |
|
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes * w/ SSD, according to IEC60068-2-64 |
|
| EMC | CE, FCC Class A | |
| Safety | LVD (EN60950-1) , Pending | |
| Railway | EN50155, EN50121-3-2 | |
| In-Vehicle | E-Mark (E13) , Pending | |
| MTBF | 407,391 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 |
|
订购信息
Available Models
Package Checklist
Optional Accessories
| Model No. | Product Description |
| DX-1100-R10 | 8th Generation Intel® Xeon® and Core Processors, Extreme Performance, Compact and Modular Rugged Workstation |
Package Checklist
| √ DX-1100 Rugged Workstation x1 | √ Power Terminal Block Connector x1 |
| √ CPU Heatsink Pack x1 | √ Remote Power On/Off Terminal Block Connector x1 |
| √ Utility DVD Driver x1 | √ Fan Terminal Block Connector x1 |
| √ Screw Pack x1 | √ DVI-I to VGA Adaptor x1 |
| √ Wall Mounting Kit x1 |
Optional Accessories
| Model No. | Description |
| CFM-PoE01 | CFM Module with PoE Control Function, Individual Port 25.5W |
| CFM-IGN01 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable |
| CMI-LAN01/UB0912 | CMI Module with 4x Intel I210-AT GbE LAN, RJ45 Port / 1x Universal Bracket with 4x RJ45 Cutout for DX Series |
| CMI-M12LAN01/UB0910 | CMI Module with M12 Connector, 4x Intel GbE LAN / 1x Universal Bracket with 4x M12 Cutout for DX Series |
| CMI-DIO01/UB0918 | CMI Module with 16DIO (8in 8out) / 1xUniversal Bracket with DIO Cutout for DX Series |
| CMI-COM01/UB0903 | CMI Module with 2x RS232/422/485 (Support 5V/12V) / 1x Universal Bracket with 2x DB9 Cutout for DX Series |
| MEC-COM-M212-TDB9/UB0903 | Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Thin DB9 Cable / 1x Universal Bracket with 2x DB9 Cutout for DX Series |
| MEC-COM-M334-TDB9/2xUB0903 | Mini-PCIe Module with 4x RS-232 Serial Ports, 2x Thin DB9 Cable / 2x Universal Bracket with 2x DB9 Cutout for DX Series |
| MEC-LAN-M002-30/UB0911 | Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout for DX Series |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI |
| GST220A24-CIN | Adapter AC/DC 24V 9.2A 220W, with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, level VI |

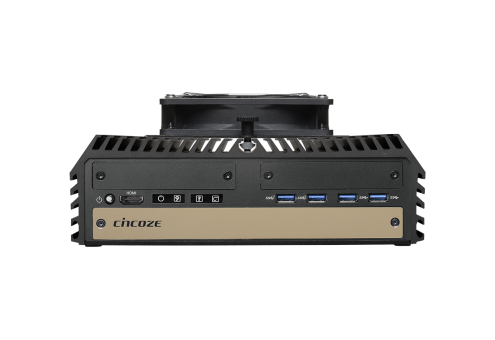

| FAN-EX101 | External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support smart fan |
| SIDE-DX | DX Series side mount kit |
| DIN01 | DIN-RAIL Mount Kit, KMRH-K175 |
