DI-1000-I5
第六代英特尔®核心™移动处理器(Skylake-U),它集成了英特尔®高清图形引擎可容纳多达16GB的DDR4插槽。
产品特点
- Onboard 6th Generation Intel® Core™ Mobile Processor (BGA Type)
- 1x DDR4 SO-DIMM Socket, 2133MHz, Supports Up to 16 GB
- Triple Independent Display (DVI-I, DisplayPort)
- Compact Size 203 x 142 x 66.8 mm with Light Weight 1.65 kg
- 1x Hot-swappable 2.5” SATA HDD/SSD Bay and 1x Internal 2.5” SATA HDD/SSD Bay, Supports RAID 0/1

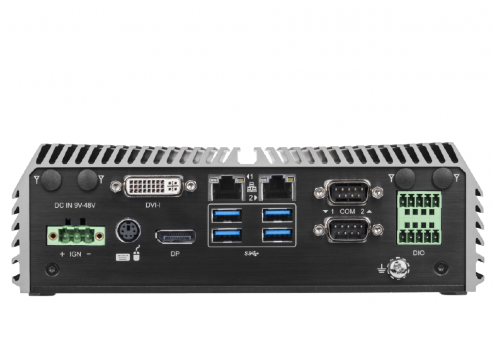

- Rich I/O Including DVI, DP, 2x GbE LAN, 6x COM, 6x USB, 8x Optical Isolated DIO

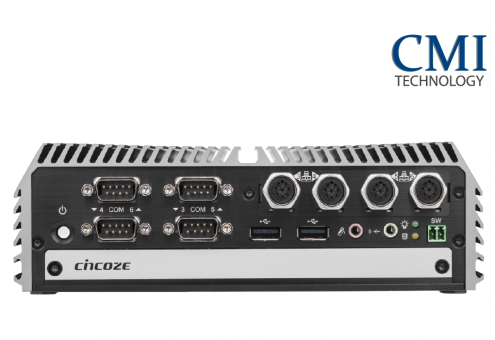

- Supports Cincoze CMI Technology for LAN, PoE & M12 Connector Expansion
- Supports Cincoze CFM Technology for Power Ignition Sensing (IGN) Function Expansion
- Cincoze MEC Module Kits for Various I/O Expansion

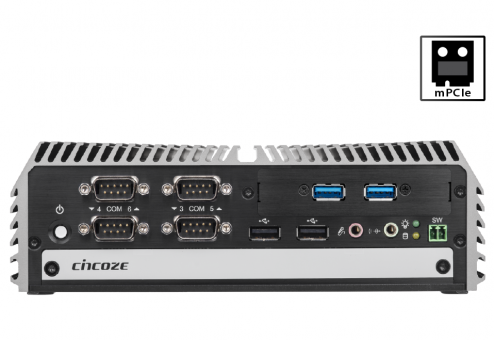

- 2x Full-size Mini-PCIe Slots for Wireless and I/O Expansion
- Wide Operating Temperature (-40°C to 70°C)
- EN50155 Certified for Railway Application
- E-Mark (E13, No. 10R-0514273) Certified for In-vehicle Application
产品介绍

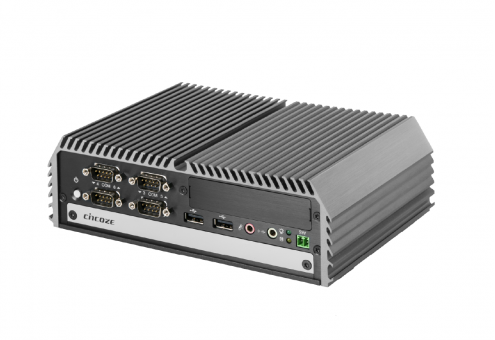

Cincoze DI-1000系列是一个高性能、紧凑,模块化无风扇的嵌入式计算机由第六代英特尔®核心™移动处理器(Skylake-U),它集成了英特尔®高清图形引擎可容纳多达16GB的DDR4插槽。DI-1000系列可以满足各种高端计算要求。非常紧凑的大小尺寸203 x 142 x 66.8毫米,包括DVI-I等无与伦比的I / O,DP,2 xLAN,6 x COM,6 x USB,8路可选的DIO,PS / 2,音频输入输出,和远程电源开/关开关,支持两个全尺寸Mini-PCIe配备无线通信和I / O扩展插槽,容纳两个2.5”SATA硬盘/ SSD，RAID0/1。让DI-1000系列不能匹敌的市场的规模和功能。DI-1000系列仅重量1.65公斤，支持4种安装机制(墙壁、DIN、Side和VESA)，允许安装在任何地方。独特的Cincoze的CMI(组合I / O)、CFM(控制功能模块)和MEC(迷你pcie卡)技术允许根据具体的需要扩展di1000系列。可供选择的模块包括多网口、POE、M12、电源点火系统和各种类型的I / O接口，为工厂自动化、机器视觉、车载和移动监视应用提供了DI-1000系列应用程序平台。
详细规格
| Model Name | DI-1000-i5 | |
| System | Processor | Onboard Intel® Core™ i5-6300U Processor (3M Cache, up to 3.00 GHz, 15W TDP) |
| Chipset | SoC | |
| Memory | 1x DDR4 260-pin SO-DIMM Socket, Support up to 16 GB (2133MHz, Un-buffered and Non-ECC type) |
|
| Graphics | • Integrated Intel® HD Graphics • Three Independent Display |
|
| Audio | • Realtek® ALC888-GR • High Definition Audio |
|
| BIOS | AMI 8Mbit SPI BIOS | |
| I/O Interface | DVI | 1x DVI-I Connector, Resolution 1920 x 1080 |
| DP | 1x DisplayPort Connector, Resolution 3840 x 2160 | |
| LAN | 2x GbE LAN (Support Wake-on-LAN, Teaming, Jumbo Frame, IEEE 1588v2 and PXE), RJ45 - GbE1: Intel I210AT - GbE2: Intel I219LM |
|
| Serial Port | 6x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9 | |
| USB | ．4x USB 3.0, Type-A ．2x USB 2.0, Type-A |
|
| PS/2 Port | 1x PS/2, 6-Pin Mini-DIN Female Connector | |
| Isolated DIO | 8x Optical Isolated DIO (4x DI, 4x DO), 10-Pin Terminal Block Support 5~48V | |
| Line-Out | 1x Line-Out, Phone Jack 3.5mm | |
| Mic-In | 1x Mic-In, Phone Jack 3.5mm | |
| Power Button | 1x ATX Power On/Off Button | |
| AT/ATX Switch | 1x AT/ATX Mode Switch | |
| Clear CMOS Switch | 1x Clear CMOS Switch | |
| Remote Power On/Off Connector | 1x Remote Power On/Off Connector, 2-pin Terminal Block | |
| Storage | SSD/HDD | 2x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 (Gen3) (One Internal, One Front Accessible & Hot-swappable) |
| mSATA | 2x mSATA (Shared by Mini-PCIe Socket) (Gen2) | |
| Expansion | CFM (Control Function Module) Interface | 1x CFM Interface for CFM Modules |
| CMI (Combine Multiple I/O) Interface | 1x CMI Interface for CMI Modules | |
| Mini PCI Express | 2x Full-size Mini PCIe Supports Wireless & I/O Expansion | |
| SIM Socket | 1x SIM Socket | |
| Other Function | CFM | Support CFM (Control Function Module) Technology |
| CMI | Support CMI (Combined Multiple I/O) Technology | |
| Instant Reboot | Support 0.2sec | |
| Super Cap | Super Cap integrated for CMOS Battery Maintenance-free | |
| Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset | |
| Power Requirement | Power Type | AT/ATX |
| Power Input Voltage | 9~48VDC | |
| Connector | 3-pin Terminal Block | |
| Power Adapter | Optional AC/DC Adapter ．AC/DC 12V/5A, 60W ．AC/DC 24V/5A, 120W |
|
| Physical | Dimension (WxDxH) | 203 x 142 x 66.8 mm |
| Weight Information | 1.65 kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | Wall / Side / DIN-RAIL / VESA | |
| Unibody Design | Yes | |
| Fanless Design | Yes | |
| Cable-less Design | Yes | |
| Jumper-less Design | Yes | |
| Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | 58V | |
| Over Current Protection | 15A | |
| ESD Protection | +/-15kV(Air), +/-8kV(Contact) | |
| Surge | 3kW | |
| MTBF | Time | 360, 145 Hours |
| Calculation Model | Telcordia SR-332 Issue 3, Method 1, Case 3 | |
| Environment | GB, GC | |
| Temperature | 40°C | |
| Operating System | Windows | Windows 10 Windows 8.1 Windows 7 |
| Environment | Operating Temperature | Operating Temperature: -40°C to 70°C (With extended temperature peripherals; Ambient with air flow; According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14) |
| Storage Temperature | -40°C to 85°C | |
| Relative Humidity | 95% RH @ 40°C (Non-condensing) | |
| Shock | Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) |
|
| Vibration | Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) |
|
| EMC | CE, FCC Class A | |
| Railway | EN50155, EN50121-3-2 | |
| In-Vehicle | E-Mark (E13, No. 10R-0514273) Certified | |
订购信息
Available Models
Package Checklist
Optional Accessories
| Model No. | Product Description |
| DI-1000-i5 | 6th Gen. Intel® Core™ i5-6300U High Performance, Compact and Modular Rugged Embedded Computer |
Package Checklist
| √ DI-1000 Embedded System x 1 | √ Power Terminal Block Connector x 1 |
| √ CPU Heatsink Thermal Pad x 1 | √ Remote Power On/Off Terminal Block Connector x 2 |
| √ Utility DVD Driver x 1 | √ DIO Terminal Block Connector x 2 |
| √ Screw Pack x 1 | √ DVI-I to VGA Adaptor |
| √ Wall Mounting Kit x 1 |
Optional Accessories
| Model No. | Description |
| CFM-IGN102 | CFM Module with Power Ignition Sensing Control Function, Selectable 12V/24V |
| CMI-LAN104/UB0712 | CMI Module with 4x Intel GbE LAN, RJ45 Port, 1x Universal Bracket |
| CMI-PoE114/UB0712 | CMI Module with 4x PoE+, Intel GbE LAN, RJ45 Port, Individual Port 25.5W, 1x Universal Bracket |
| CMI-M12LAN104/UB0710 | CMI Module with M12 Connector, 4x Intel GbE LAN, 1x Universal Bracket |
| CMI-M12PoE114/UB0710 | CMI Module with M12 Connector, 4x PoE+, Intel GbE LAN, Individual Port 25.5W, 1x Universal Bracket |
| MEC-COM-M212/UB0703 | Mini-PCIe Module with 2x COM Ports, 2x Universal Brackets |
| MEC-FIR-M003/UB0701 | Mini-PCIe Module with 1x 1394A Port, 2x 1394B Ports, 1x Universal Bracket |
| MEC-LAN-M002-R1/UB0711 | Mini-PCIe Module with 2x LAN Ports, 1x Universal Bracket |
| MEC-USB-M002/UB0714/CB0101 | Mini-PCIe Module with 2x USB 3.0 Ports, 1x Universal Bracket, 1x Cable for MEC-USB |
| DIN01 | DIN-RAIL Mount Kit, KMRH-K175 |
| SIDE01 | SIDE Mount Kit |
| GSM60A12-CIN1 | Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch, with Tubes |
| GS120A24-CIN1 | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug 5.0mm Pitch, with Tubes |
